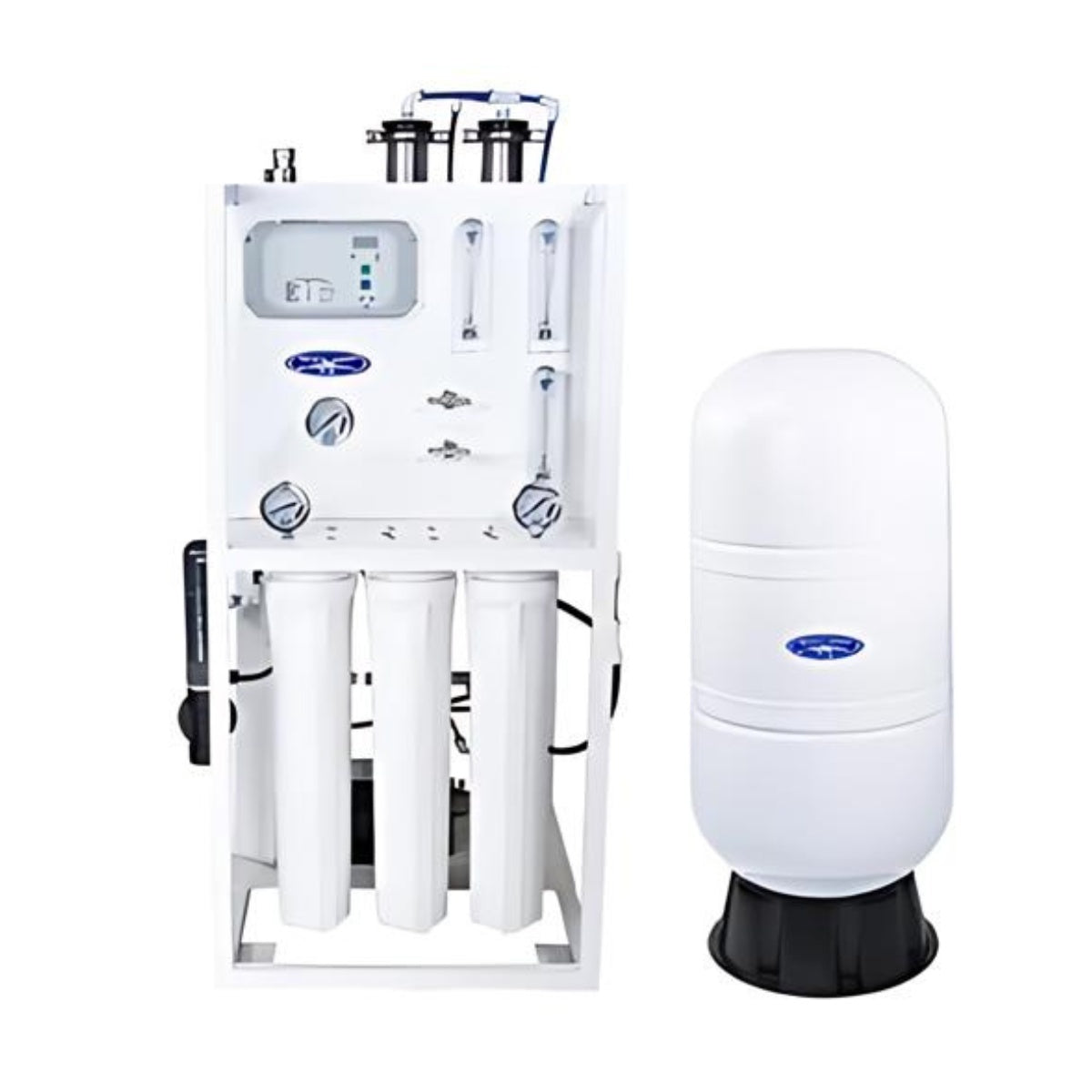

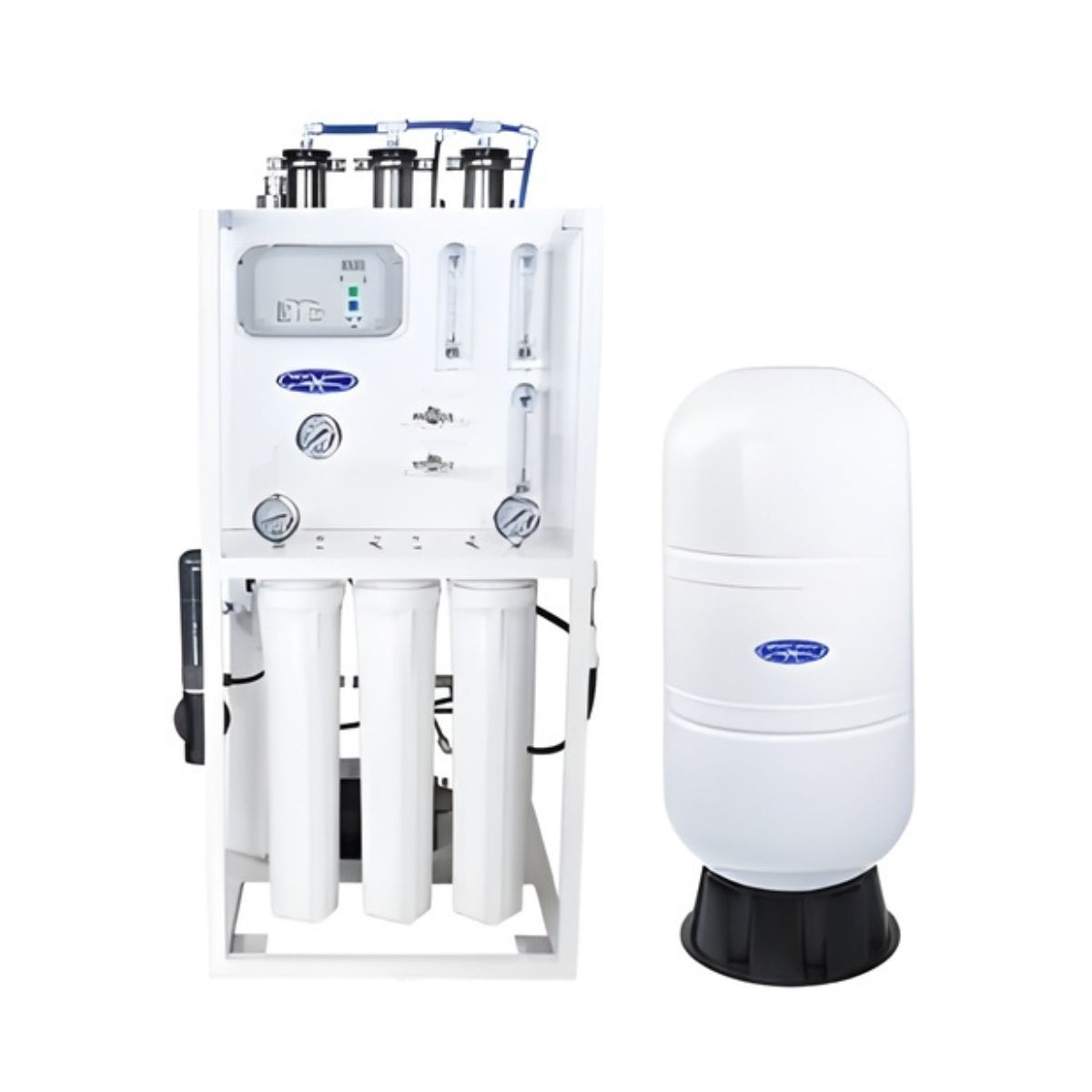

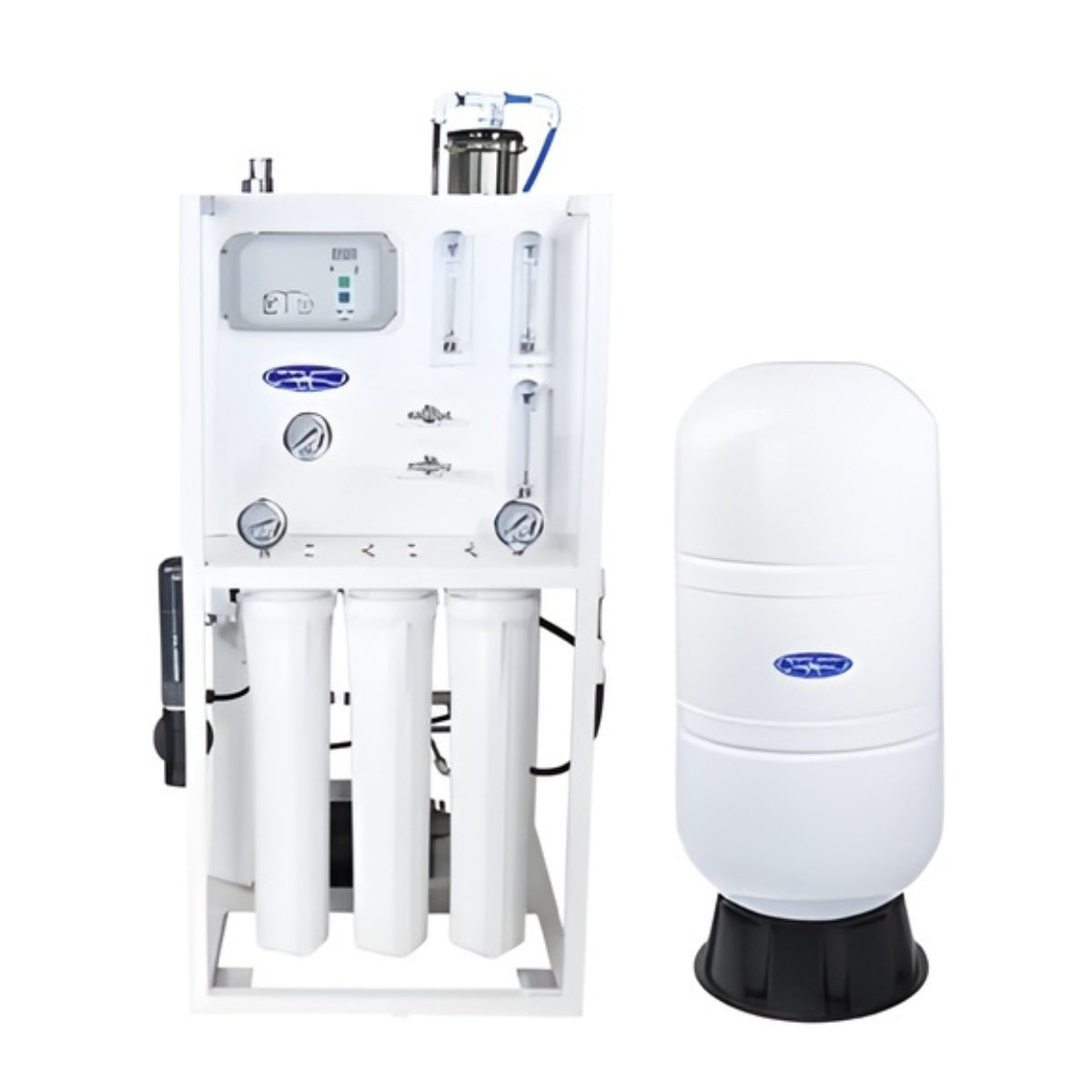

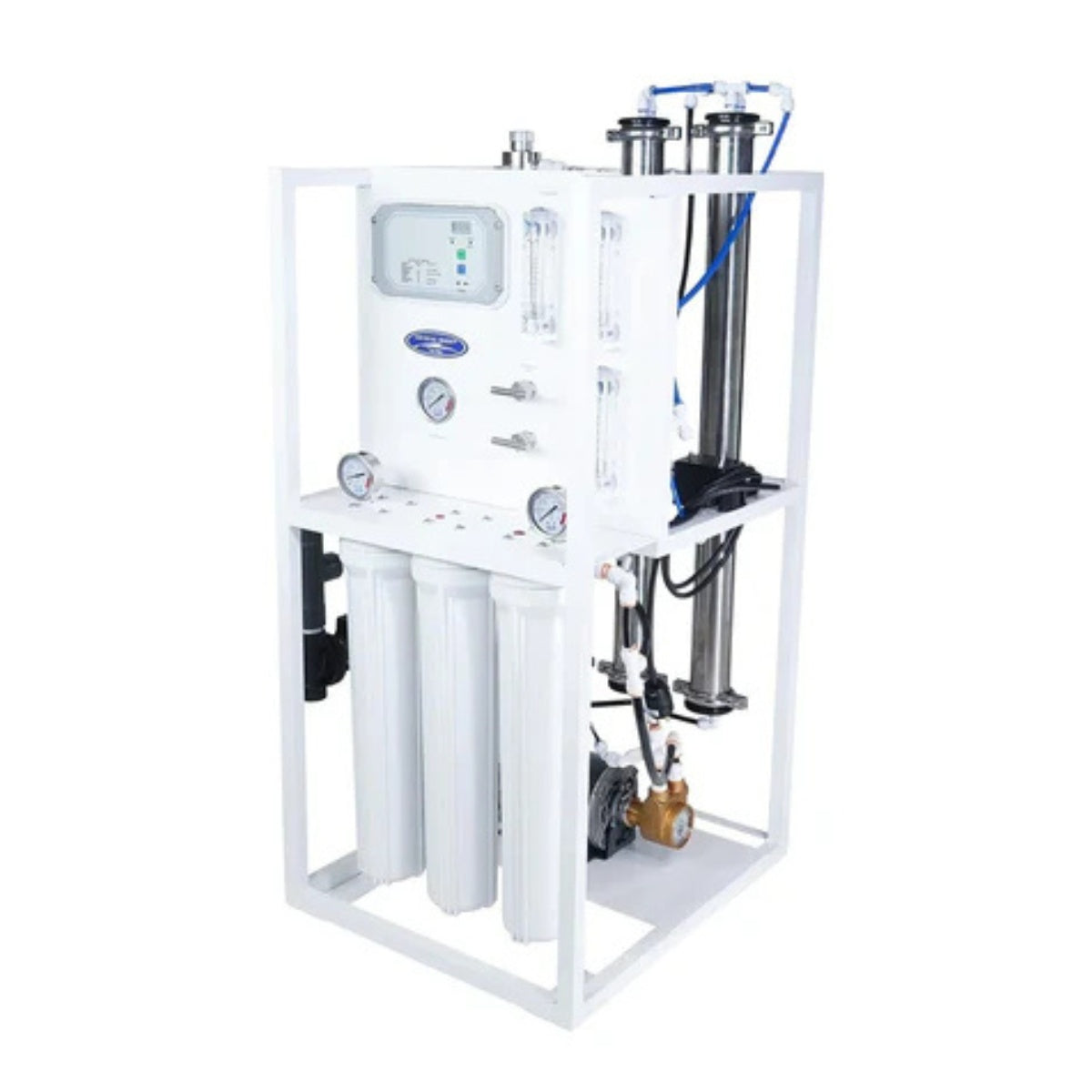

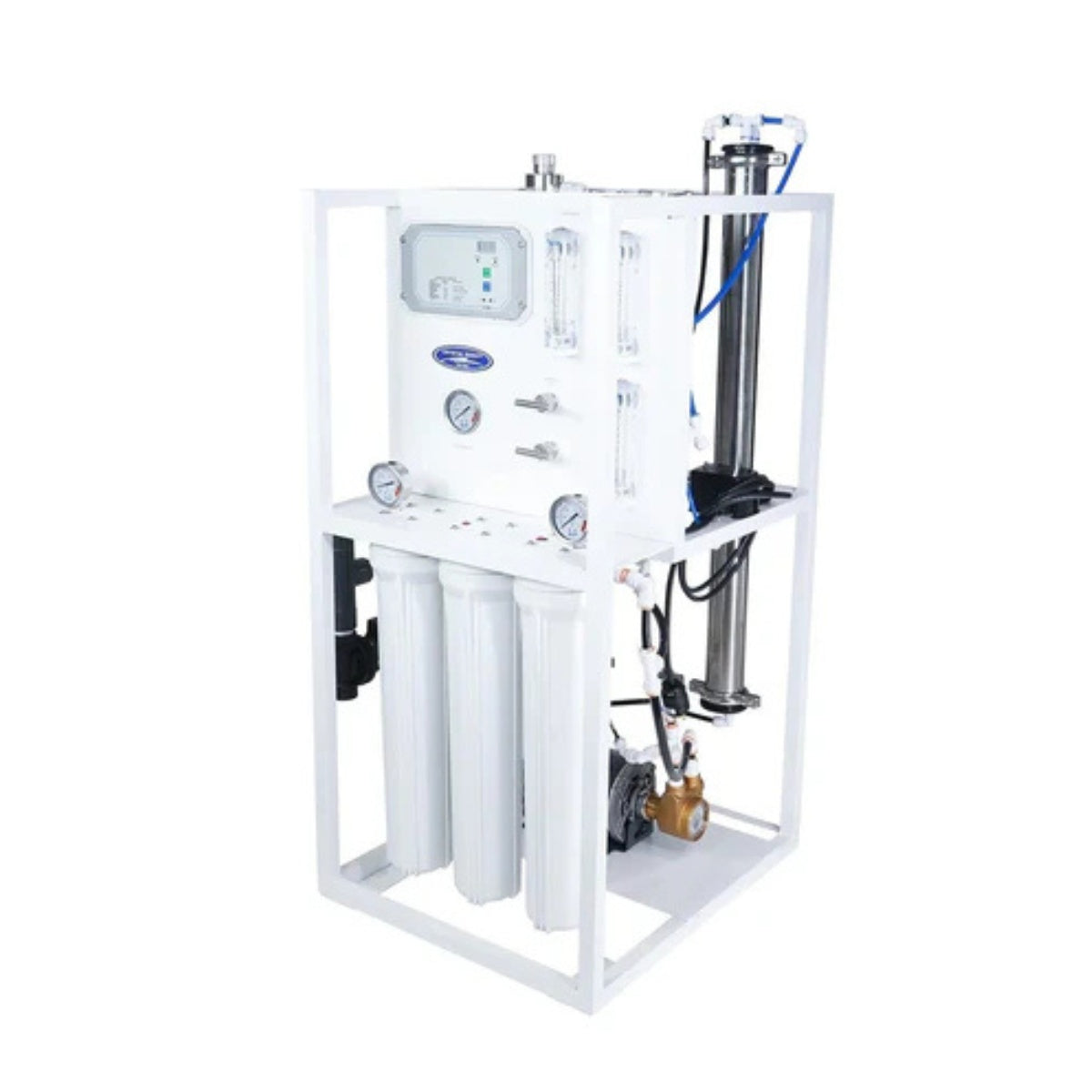

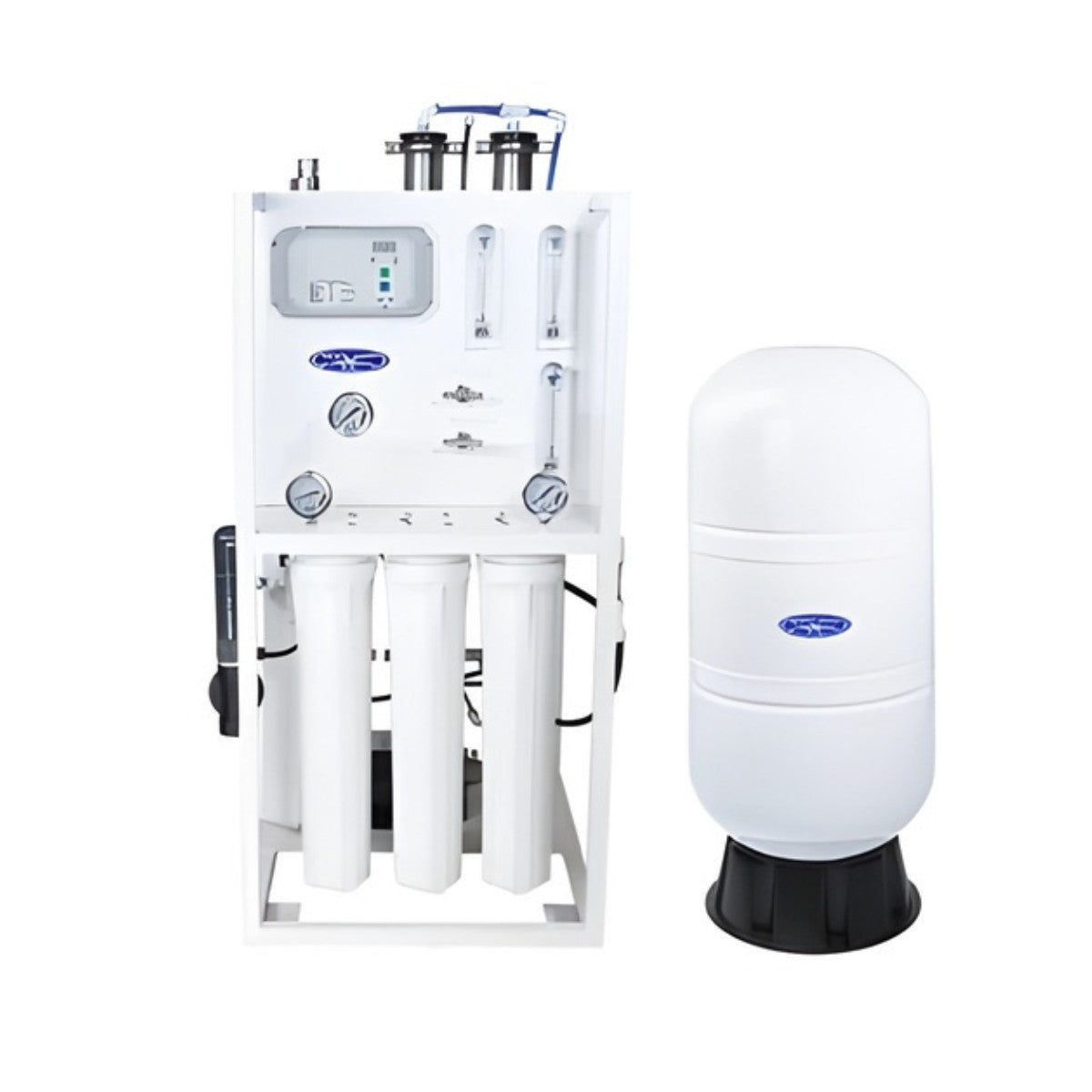

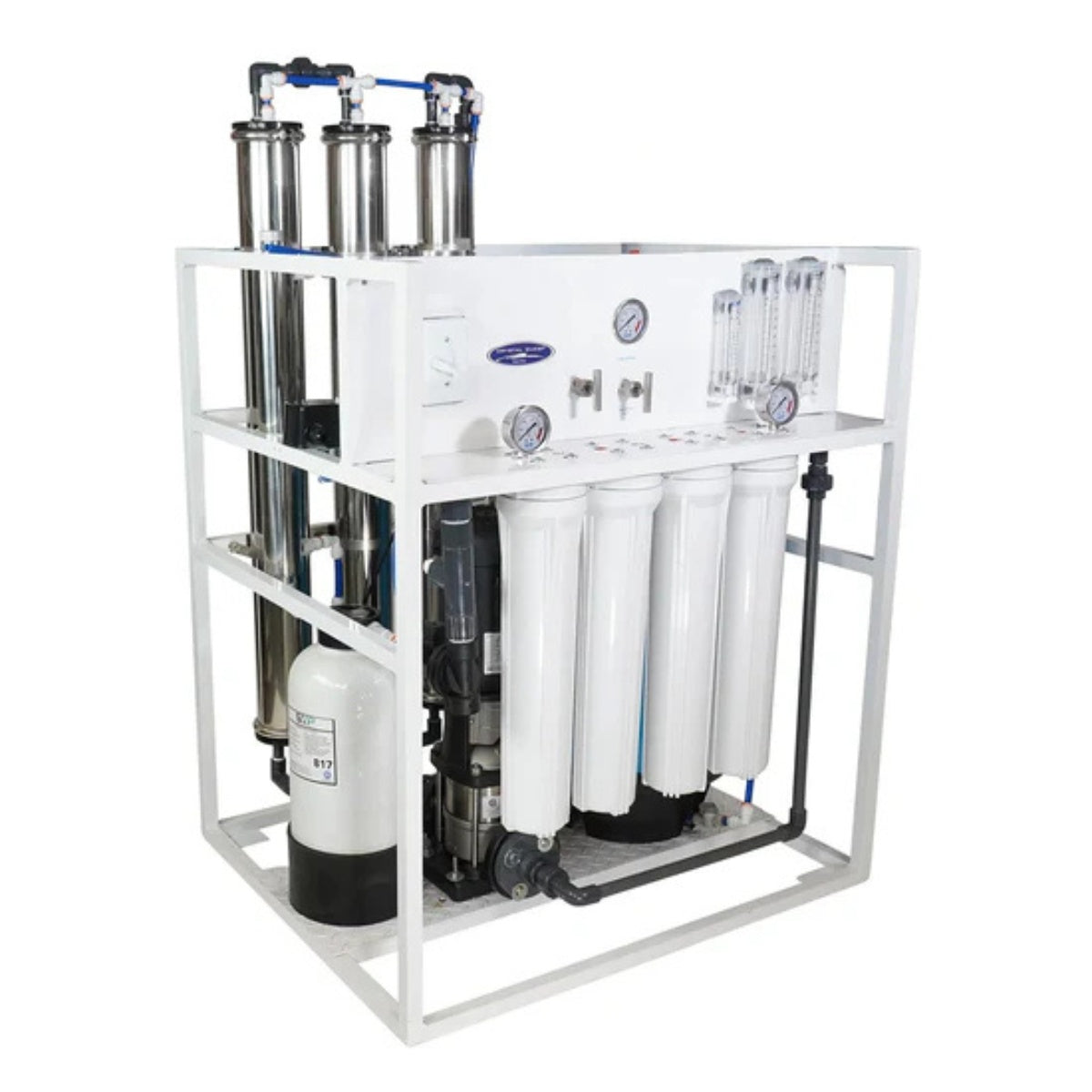

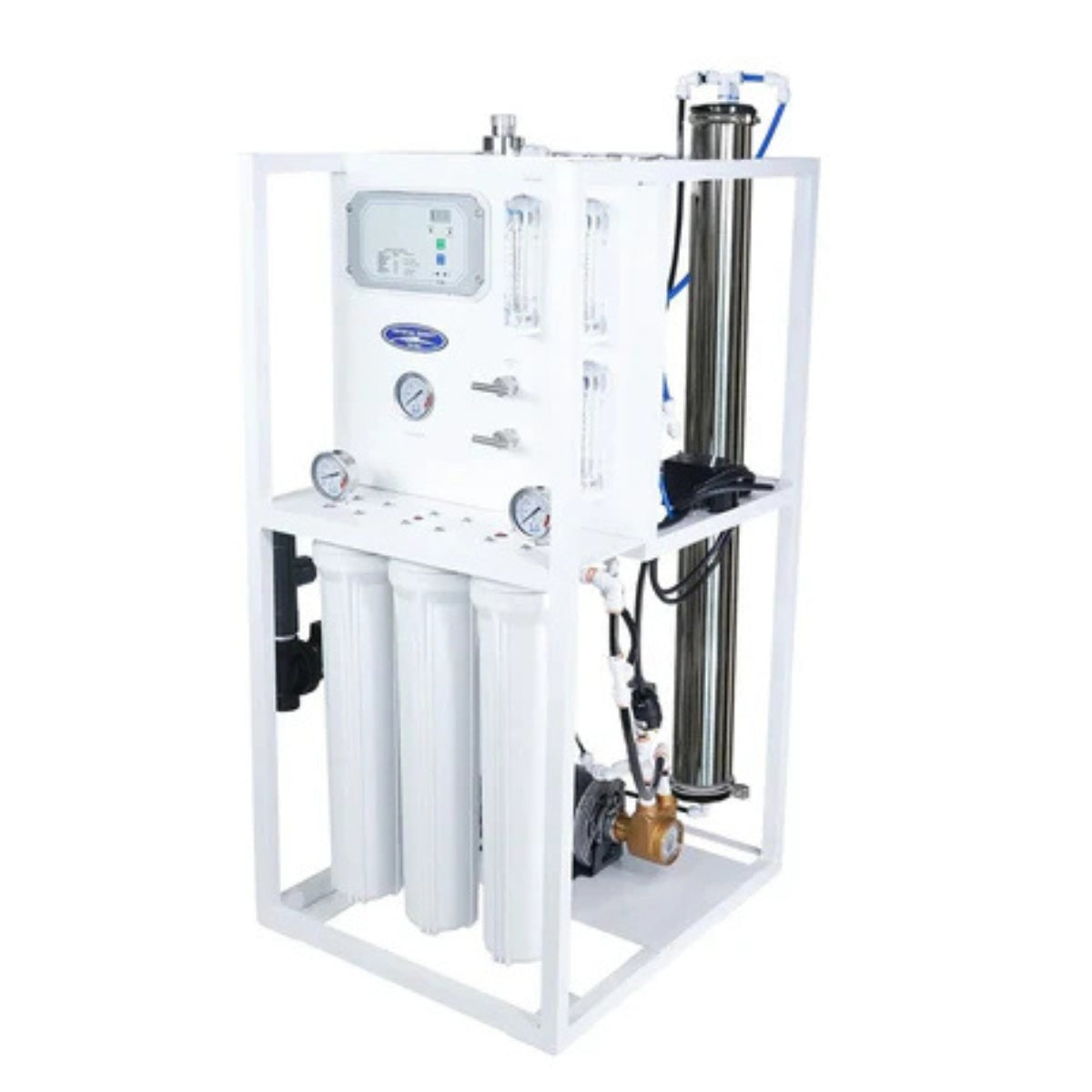

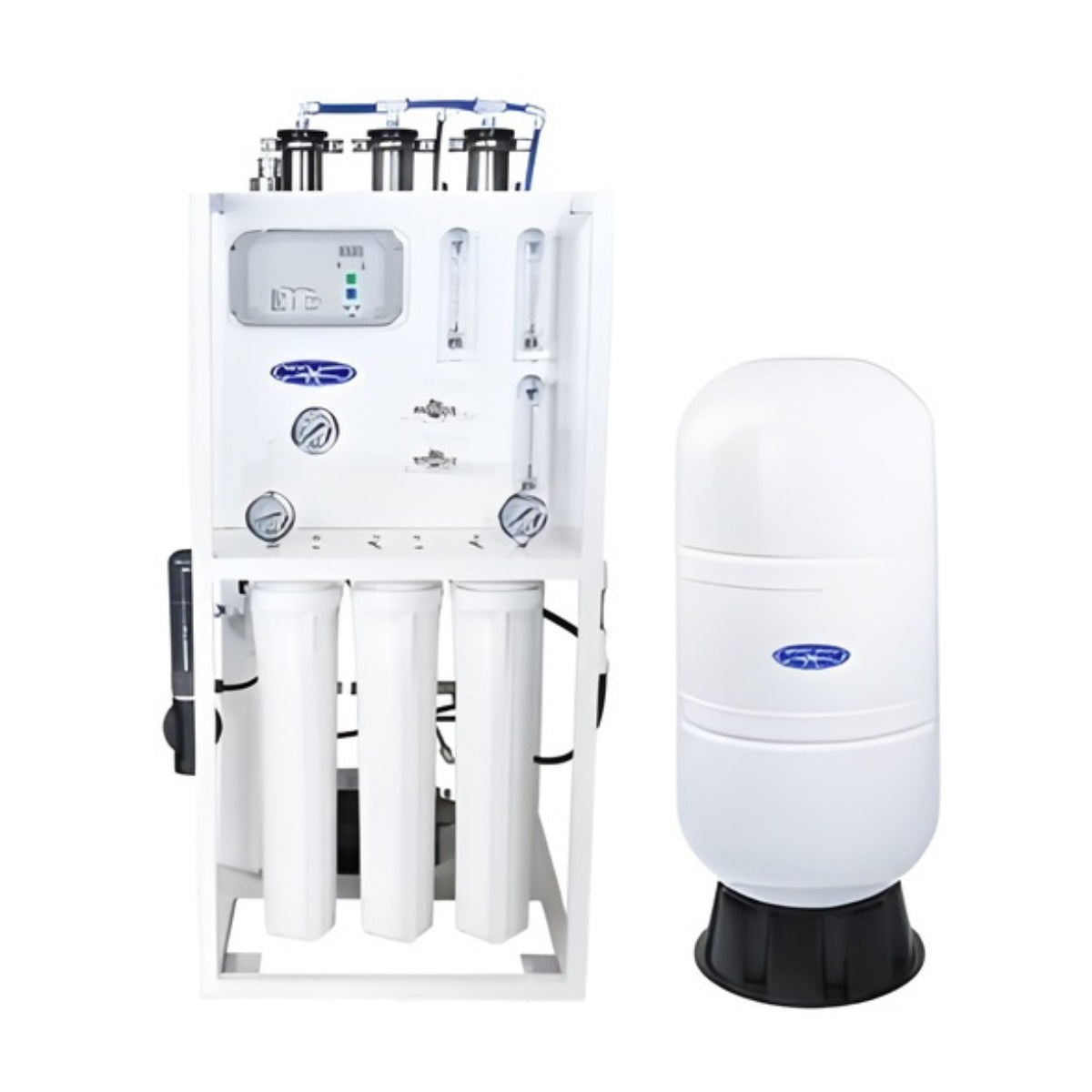

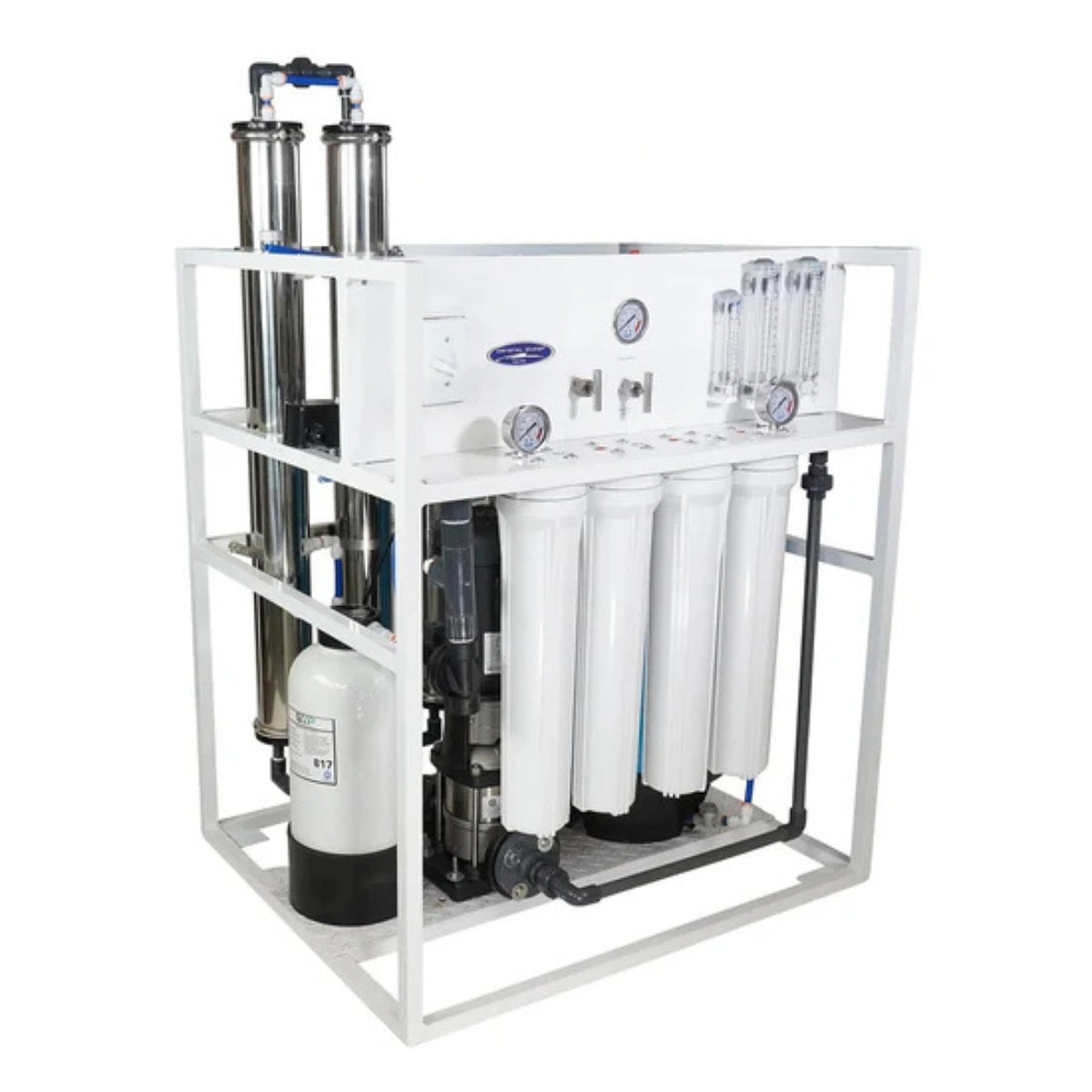

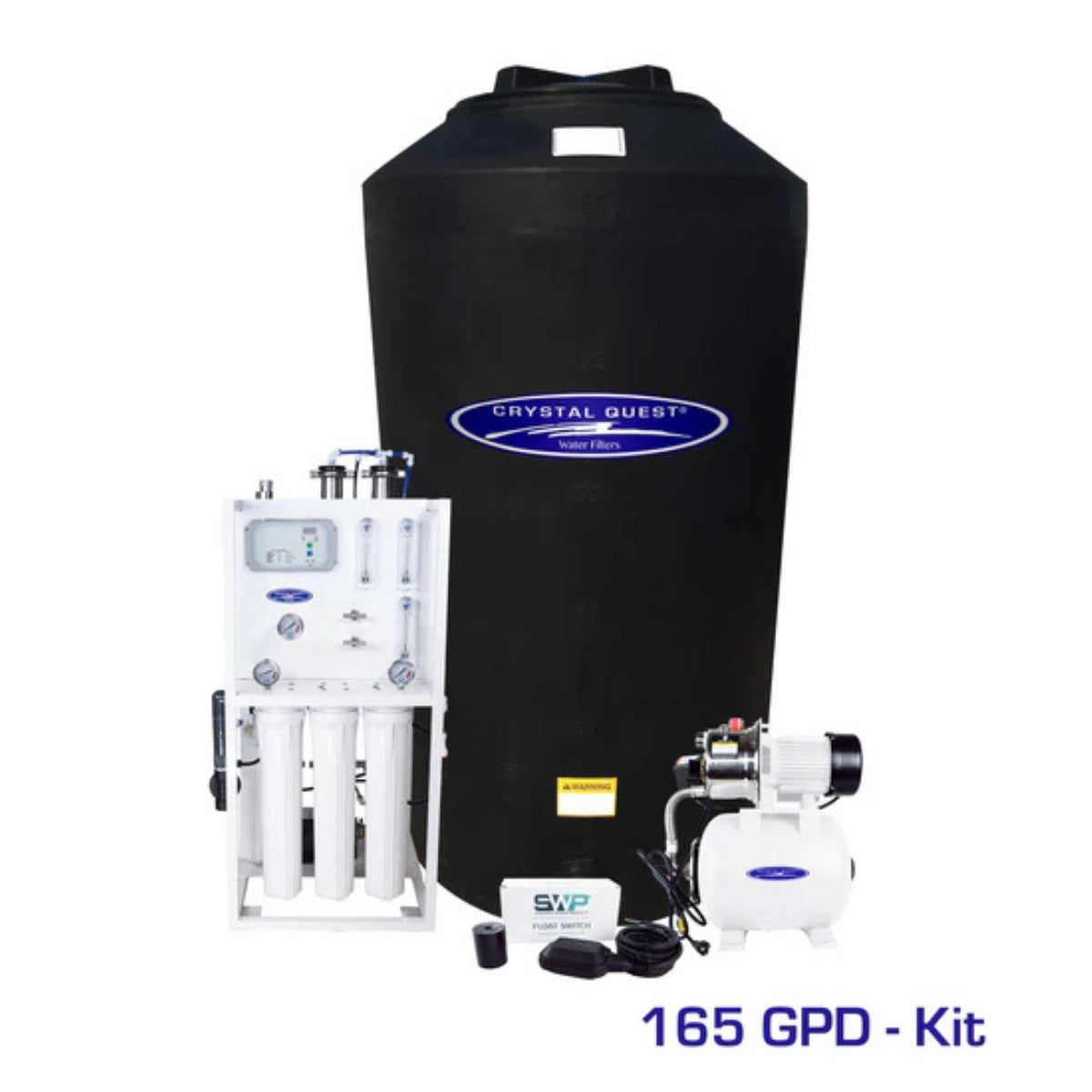

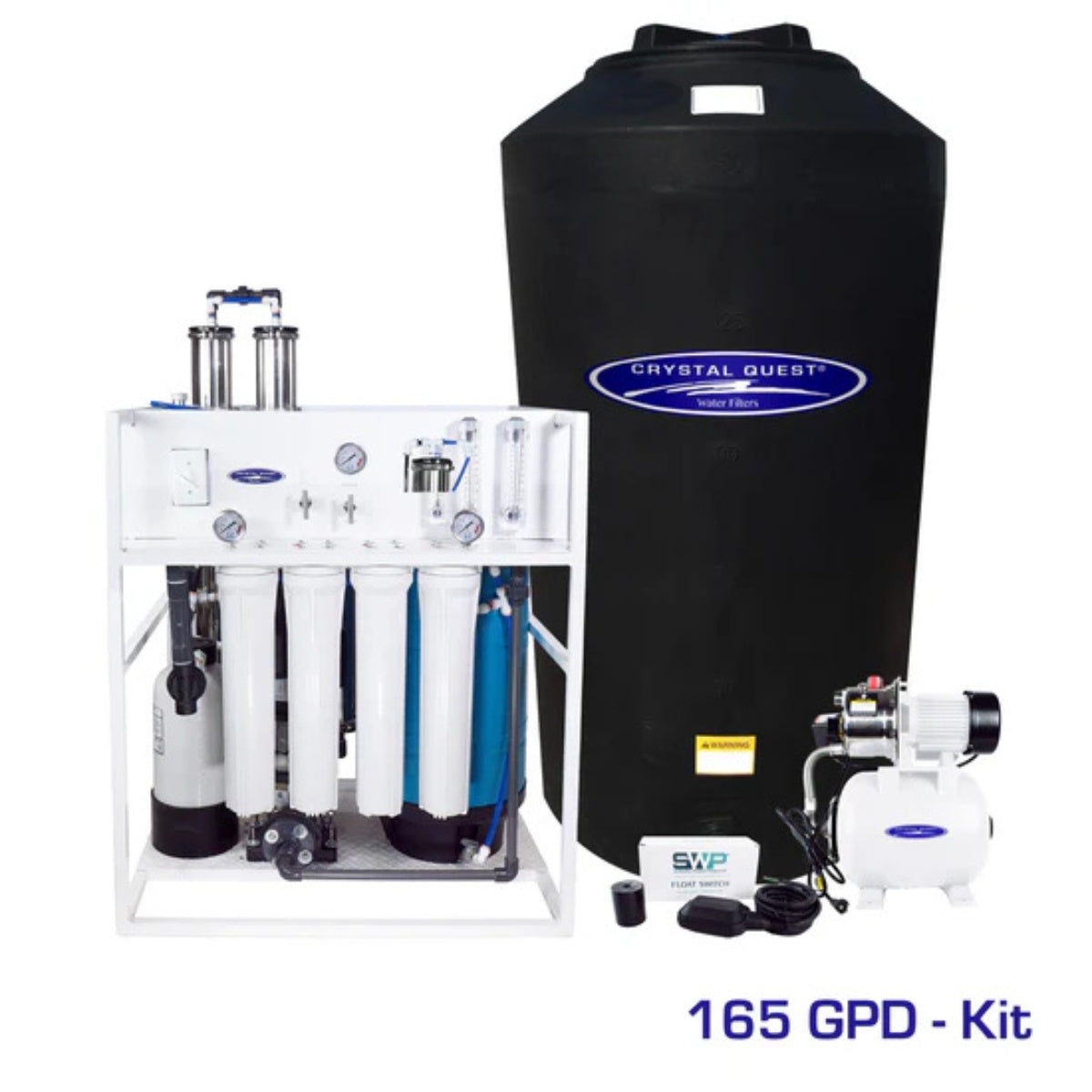

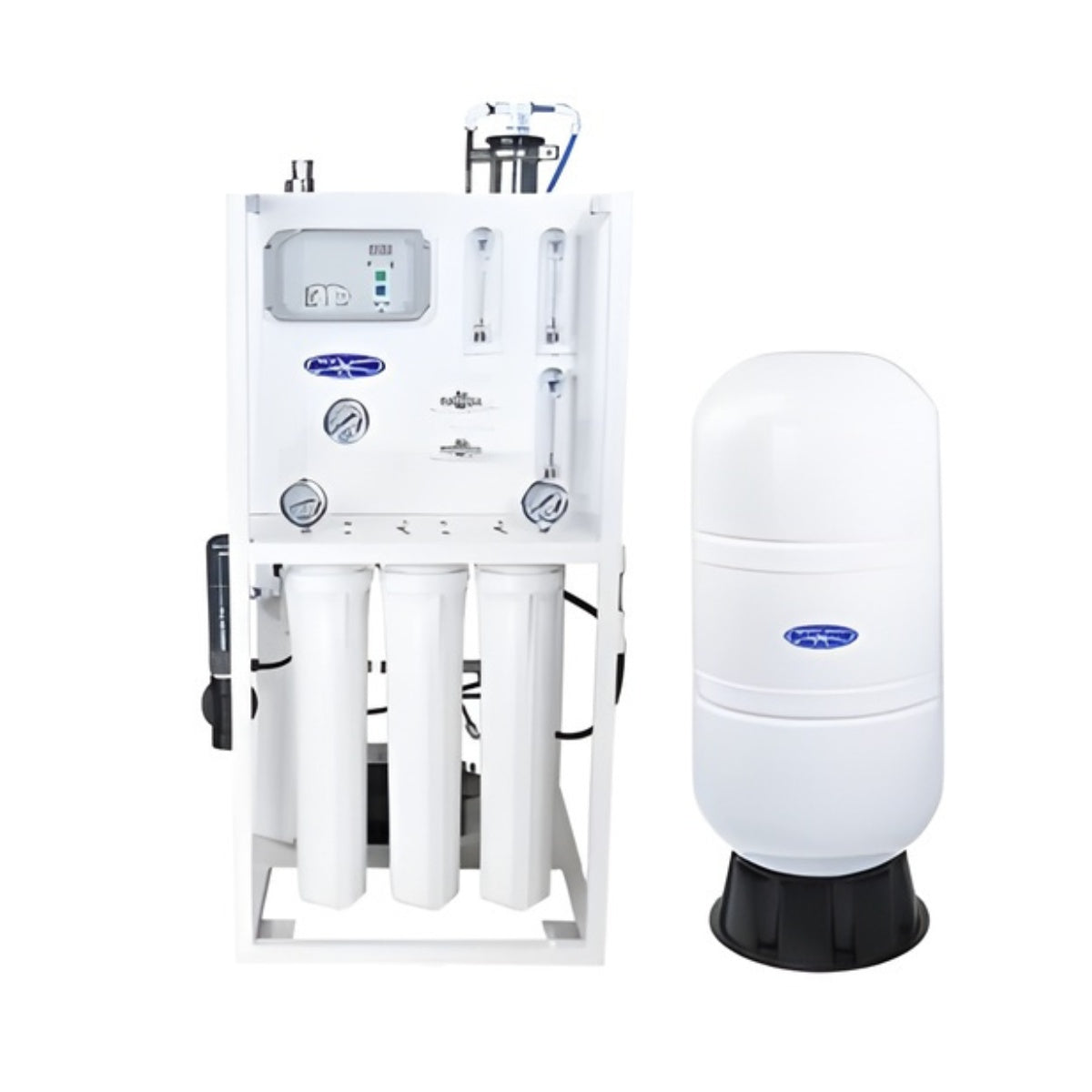

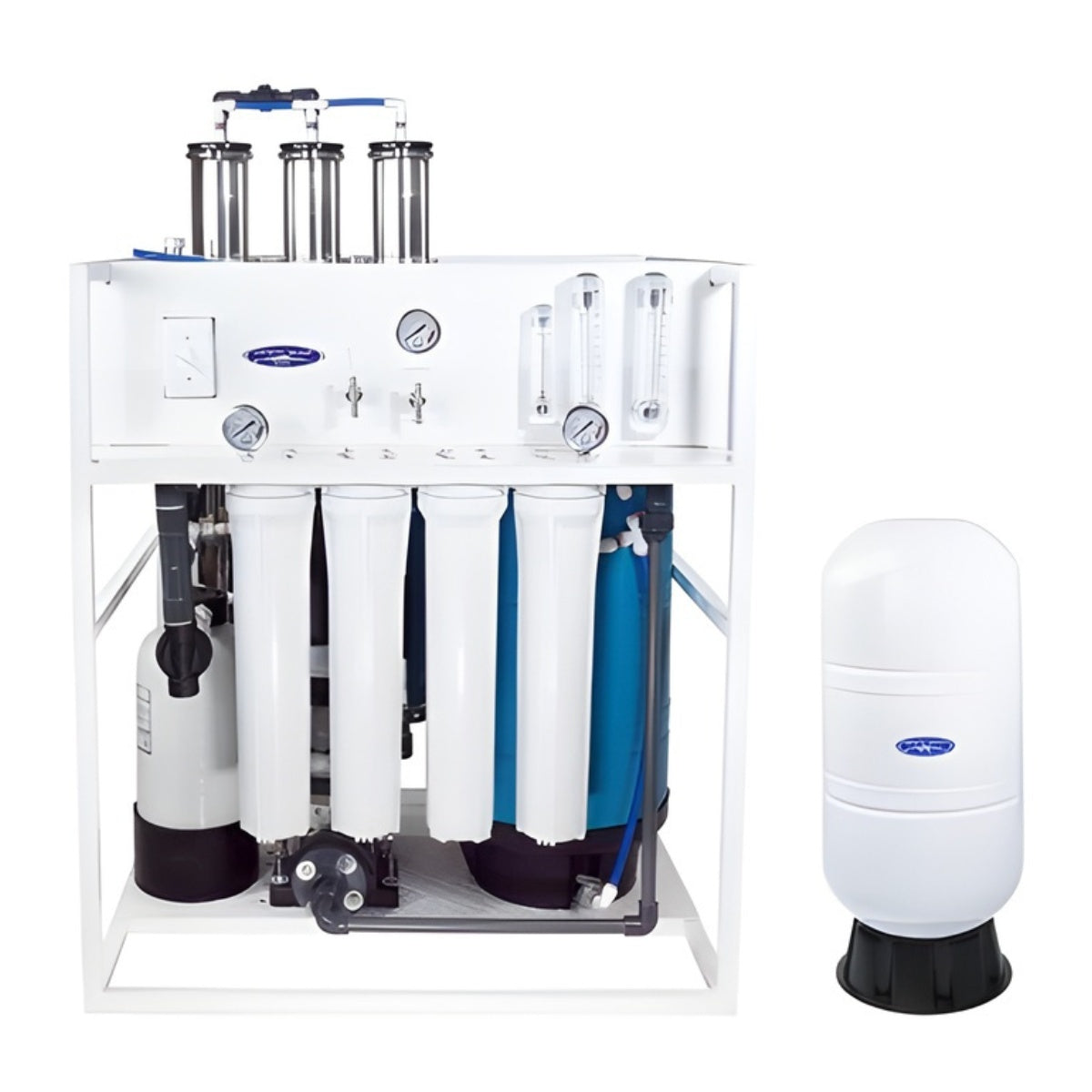

Medical Mid-Flow Reverse Osmosis System (500-7000 GPD)

Medical Mid-Flow RO System

The Crystal Quest Medical Mid-Flow Reverse Osmosis (RO) System is a high-capacity water purification solution designed specifically for medical facilities, laboratories, and other environments where the highest level of water purity is essential.

This system offers robust and reliable reverse osmosis technology, capable of producing between 500 and 7,000 gallons of purified water per day, making it an ideal choice for mid-scale operations requiring consistent and ultra-pure water quality.

Medical Mid-Flow RO System Standard Features

• Construction: Aluminum white powder coated, corrosion-resistant, and lightweight
• Stainless steel membrane housing: TFC membrane for maximum rejection of impurity and high flow
• Brass Rotary Vane High-Pressure Pump: designed for continuous use and built-in protection for loss of feedwater protection
• High-Efficiency Carbonate Motor
• SWP 316 Stainless steel concentrate valve: to control permeate versus concentrated water
• SWP Flow meter: to display permeate and concentrated water flow
• SWP 0-100 psi Pre-filter pressure gage Indicator: to aids on timely cartridges change
• SWP 0-300 psi pump pressure gauge indicator: pump pressure gauge reading range from 120 – 200.
• Low-pressure switch: Automatically shut off RO system motor to avoid pump run dry.
• High-Pressure Tank Switch: Automatically turns off the RO system at a predetermined storage tank pressure. No need for expensive “plug/play”.
• 1” Feed solenoid valve: Automatically shuts off the feed water to the system.
• Push/Pull fittings with locking safety clips

Medical Mid-Flow RO System Benefits

• Compact Space Saving
• Components Easily Accessible
• Expandable and Lightweight Design
• Fully Equipped and Customizable
• Pre-plumbed, wired and assembled
• Low Operation Costs
• Low Maintenance Costs
• Easily Maintenance and servicing
• Factory Tested and Preserved
• CE Compliant
• 1-Year Limited Warranty
• Made in the USA

Medical Mid-Flow RO System Upgrades:

All systems include a standard with a wide range of features. There are various options and upgrades available to accommodate a diverse range of water treatment applications. Listed below is a selection of the most popular upgrades.

• Stainless-Steel Rotary Vane Pump: Offers a longer lifespan and increase resistance to high TDS feed water and corrosive materials, such as dosing chemical and antiscalants.
• Concentrate recycle valve: Allows for an increase of RO systems efficiency by recycling back wastewater into the feed stream and increasing the system recovery
• SWP Digital Dual TDS Controller: Allow for simultaneous monitoring of both feed TDS and permeate TDS levels, helping to monitor the RO system salt rejection and membrane performance.
• SWP Digital TDS Controller: Allow for monitoring either feed TDS and Permeate TDS levels
• SWP Digital TDS/Conductivity Controller: Allow for the monitoring of the RO permeate water TDS and conductivity levels, useful in evaluating overall system performance IF Computer Controller with feed flush: Allow for pre-treatment lockout functionality, tank level input, features a convenient LED status display indicator for increase ease of use.
• S150 Computer Controller with Feed Flush: Allow for pre-treatment lockout functionality, tank level input, features a convenient LED status display and alarm function.
• Chemical Pump Outlet: Provide an integrated power source with the RO system for connection of a chemical feed pump.
• Blending Valve: Allows for a mixture of feed water into final RO permeate water to achieve desirable permeate TDS.
• Permeate Sample Port: Allows for evaluation of individual membrane performance in on RO system and aids in system troubleshooting and maintenance.
• 240V 50-60Hz or 110V 50-60Hz: Allow for selecting sufficient voltage and hertz use requirement.
• Single Wood Crate
