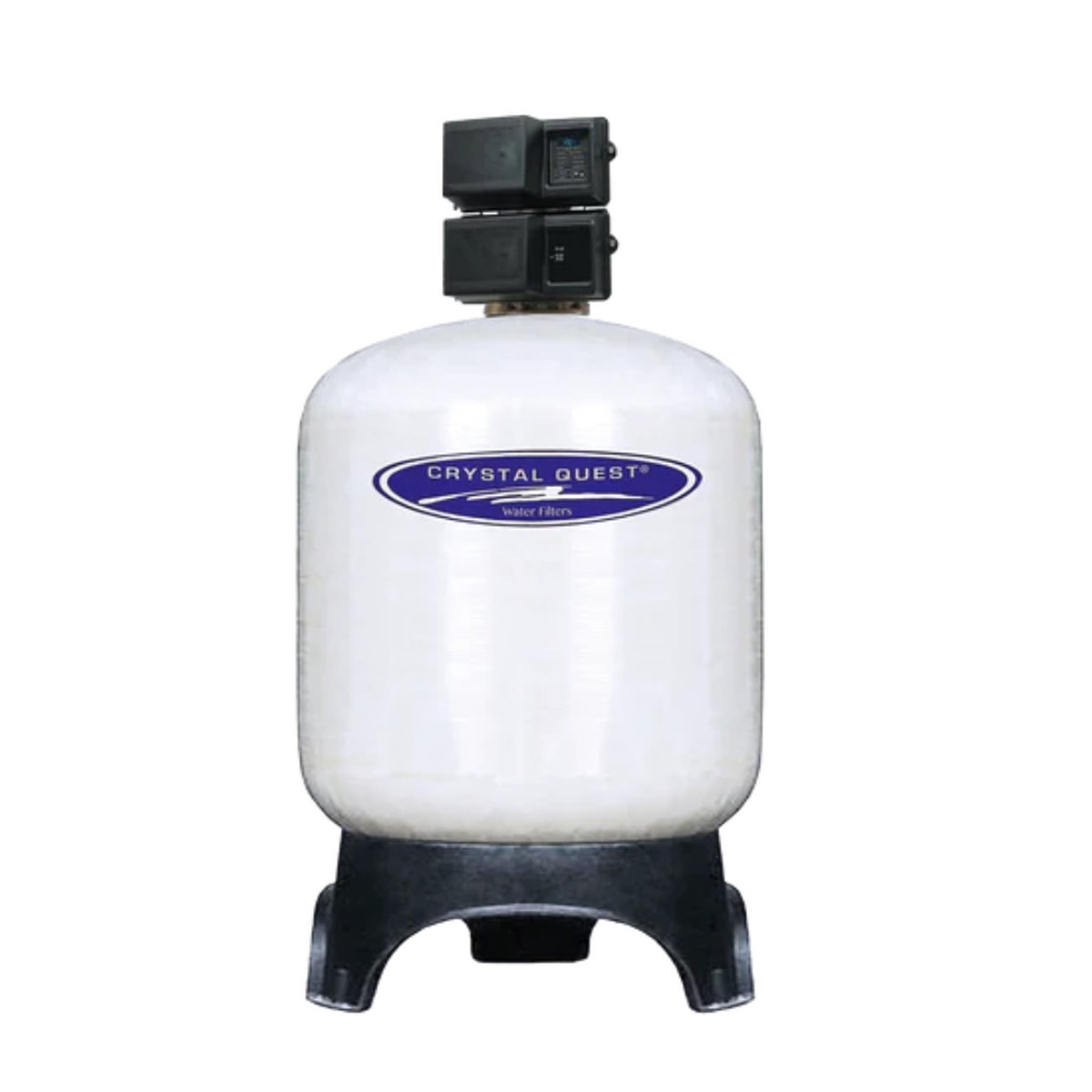

Crystal Quest SMART GAC Commercial Water Filtration System

Crystal Quest SMART GAC Commercial Water Filtration System

Features

• Timer Control Valves
• Highest Quality NSF Certified Coconut Shell Granular Activated Carbon
• Heavy duty composite fiberglass tanks
• High Flow Distributor
• All brass, motor driven control valve with fully adjustable backwash cycles
• Self-adjusting backwash controller
• Flow controller to limit backwash flow
• Engineered for commercial & industrial use

Benefits

• Reduced water consumption
• Engineered for commercial & industrial use

Add-Ons*

• Metered Control Valve
• Metered to backwash based on demand
• Backwash bypass
• 3200NT Controller
• NXT Upgrade Controller
• Duplex parallel, twin alternating, triplex (progressive)
• Optional skid mounting for tanks

*If you are interested in our available add-ons, please call to have them added to your system.

Manual Filter Valves

• Multi-port Valve with Filter function
• Reasonable fluid design
• (Service>Fast Rinse>Backwash>Fast Rinse>Service)
• Small rotation angle for opening and closing, easy operation
• Operates under pressure and is leak-proof
• Manual Filter Valve, Top Mount, 1" In/Out, 1" Female Drain,
• 1.05" OD Riser, 2.5" 8-NPSM Connection
• Manual Filter Valve, Top Mount, 2" In/Out, 1.5" Female Drain, 1.5" OD Riser, 4" 8-UN Connection

Benefits

• No electricity and no backwash.
• Both can be upflowed or downflow simply by plumbing it backward.
• Tank Head, UPVC, 2.5"-8NPSM Opening (1" NPT IN/OUT, 1" NPT Center Riser)
• Tank Head, UPVC, 4"-8UN Opening (2" NPT IN/OUT, 1.5" NPT Center Riser)

SMART GAC Water Filtration System reduces & removes harmful contaminants using our special house blend known as SMART Multimedia. These customizable systems come with pre and post-filters and can also be paired with a water softener to take care of any hard water problems.

Crystal Quest® Commercial SMART Filters differ from GAC Filters in that they contain our 2 types of Eagle Redox Alloys® to prevent bacteria growth and extend the life of the Granulated Activated Carbons (GAC). Without our 2 ERA's there is a chance of bacteria growth.

Smart Multimedia filtration is a proven design concept; the coarse media layers in the top of the tank trap large particles, and smaller particles are trapped in the finer layers of media deeper in the filtering bed. The result is highly efficient filtering since removal takes place throughout the entire bed. Smart Multimedia filters typically remove particles 5 to 15 microns in size as opposed to a conventional single media sand filter which will remove 30 microns or higher.

SMART Multimedia has an extended useful life span replacement need varies depending on system size and consumption combined with inflow water conditions the cost of filtration will be less than a penny per gallon!
