Commercial High-Flow Reverse Osmosis System 10,000 - 50,000 GPD

Commercial High-Flow RO System

The Commercial High-Flow Reverse Osmosis System is engineered for large-scale operations requiring high-capacity water purification.

With production rates from 10,000 to 50,000 gallons per day, this system delivers reliable, high-efficiency filtration for demanding commercial and industrial environments.

Designed for heavy-duty applications:

• Produces 10,000 to 50,000 GPD of purified water
• Removes dissolved solids, contaminants, and impurities
• Ensures consistent high-quality water output
• Ideal for large-scale commercial and industrial use


*Please note that heavier items may be charged shipping due to increased shipping costs.

Commercial High-Flow RO System Features & Benefits:

Features:

• High-capacity TFC membrane technology
• Stainless steel membrane housings
• Integrated pre-treatment filtration system
• Advanced monitoring gauges and displays
• Microprocessor controller (C-150 standard)
• Fully automated system controls

Benefits:

• High-volume water production for large operations
• Compact and space-saving design
• Easy access for maintenance and servicing
• Low operating and maintenance costs
• Expandable and customizable system design
• Factory tested and ready for installation
• CE compliant and made in the USA with a 1-year limited warranty

Commercial High-Flow RO System Automatically Controls:

• Motorized Actuated Feed Valve
• Delayed High-Pressure Pump Start-Up
• Automatic Shut-Down at Tank Full
• Low or High-Pressure Fault Shut-Down
• Pre-Treatment Lock-Out
• Feed Water Flush at Shut-Down
• High Product TDS Alarm Shutdown

Commercial High-Flow RO System Upgrades:

All systems include a standard with a wide range of features. There are various options and upgrades available to accommodate a diverse range of water treatment applications. Listed below is a selection of the most popular upgrades.

• Stainless-Steel Rotary Vane Pump: Offers a longer lifespan and increase resistance to high TDS feed water and corrosive materials, such as dosing chemical and antiscalants.
• Concentrate recycle valve: Allows for an increase of RO systems efficiency by recycling back wastewater into the feed stream and increasing the system recovery
• SWP Digital Dual TDS Controller: Allow for simultaneous monitoring of both feed TDS and permeate TDS levels, helping to monitor the RO system salt rejection and membrane performance.
• SWP Digital TDS Controller: Allows for monitoring either feed TDS and Permeate TDS levels
• SWP Digital TDS/Conductivity Controller: Allows for the monitoring of the RO permeate water TDS and conductivity levels, useful in evaluating overall system performance.
• C-150 Computer Controller with Feed Flush: Allow for pre-treatment lockout functionality, tank level input, features a convenient LED status display, and alarm function.
• Chemical Pump Outlet: Provide an integrated power source with the RO system for the connection of a chemical feed pump.
• Blending Valve: Allows for a mixture of feed water into final RO permeate water to achieve desirable permeate TDS.
• Permeate Sample Port: Allows for evaluation of individual membrane performance in on RO system and aids in system troubleshooting and maintenance.
• 240V 50-60Hz or 110V 50-60Hz: Allow for selecting sufficient voltage and hertz use requirement.
• Single Wood Crate

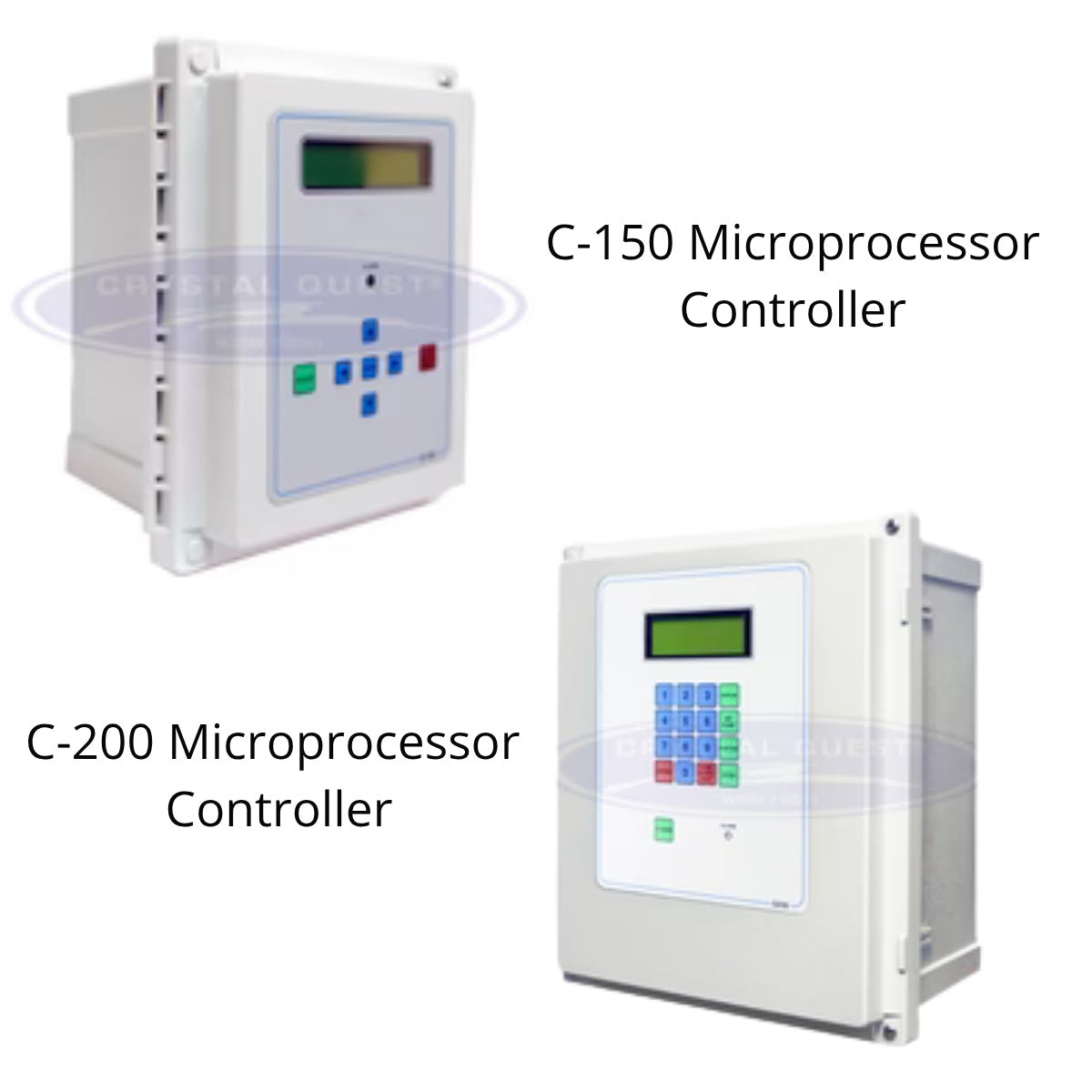

Commercial High-Flow RO System Microprocessor Controller Details

The Crystal Quest C-Series Microprocessor Controllers, including the C-150 and C-200, provide flexible and reliable control for commercial and industrial reverse osmosis systems.

The C-150 is standard for high-flow systems, featuring five relay outputs, four inputs, two TDS inputs, and a 2-line LED display. An optional Ethernet upgrade is available.

The C-200 is designed for larger systems, offering expanded inputs and outputs along with a 4-line LCD display that shows system status, alarms, temperature, and operating data.

Both controllers deliver accurate monitoring and dependable system control.

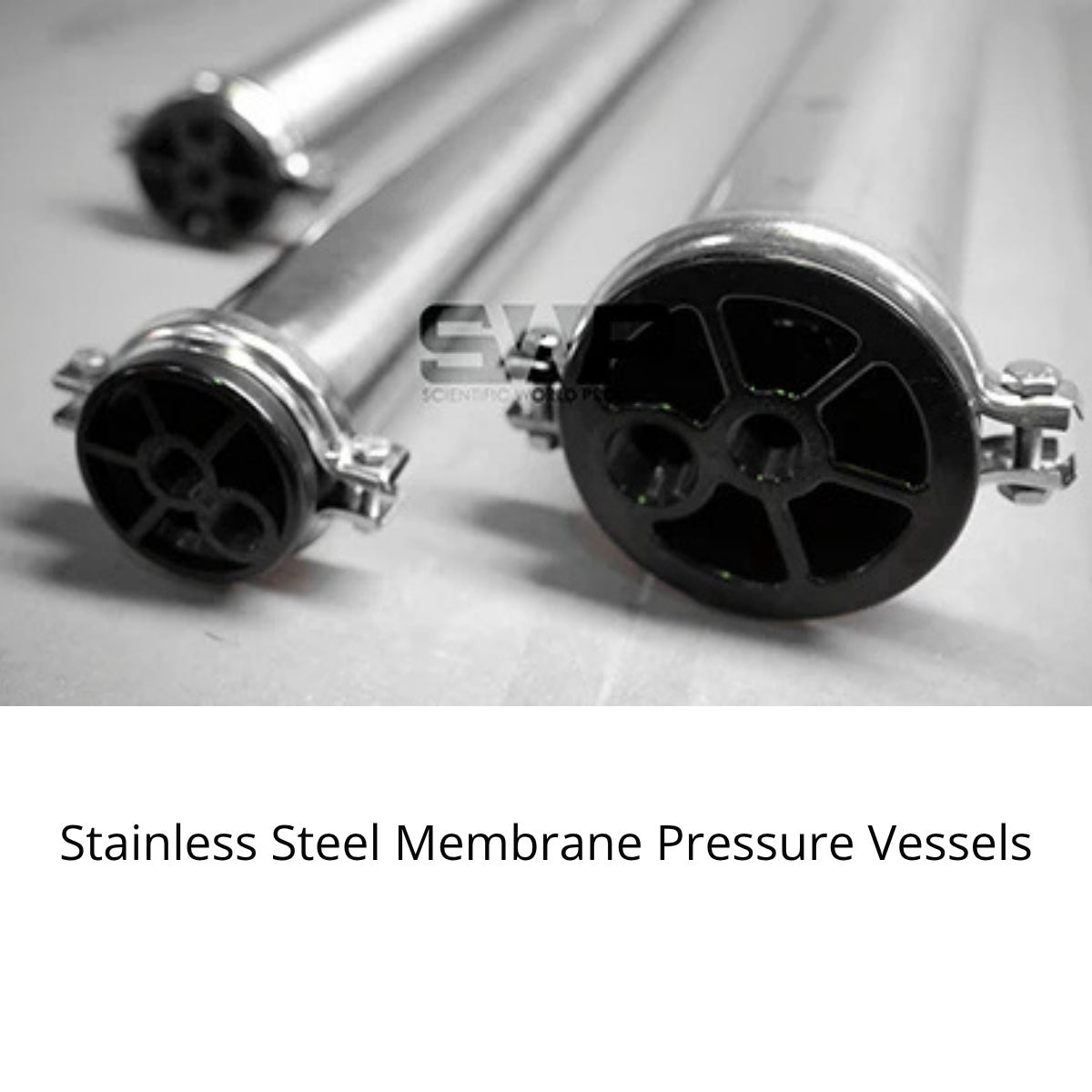

Commercial High-Flow RO System Stainless Steel Membrane Pressure Vessels

The Stainless Steel Membrane Pressure Vessels improve system appearance while maximizing membrane performance. They are safer and more reliable than PVC vessels and are built for continuous use in reverse osmosis, nanofiltration, and ultrafiltration systems at pressures up to 300 PSI.

This high-flow reverse osmosis system is designed for commercial and industrial applications and is available in 10,000, 15,000, 20,000, 30,000, 40,000, and 50,000 GPD configurations.
