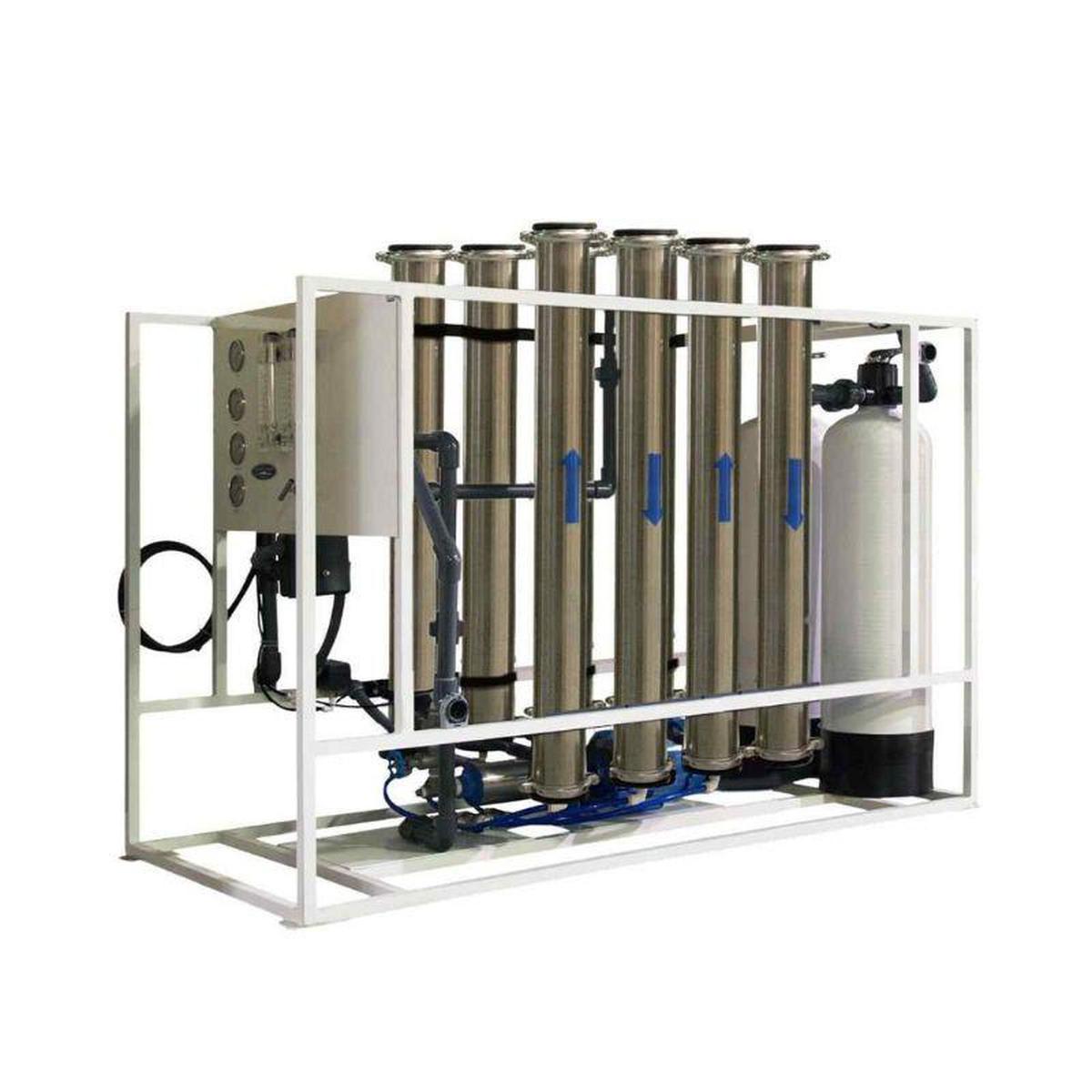

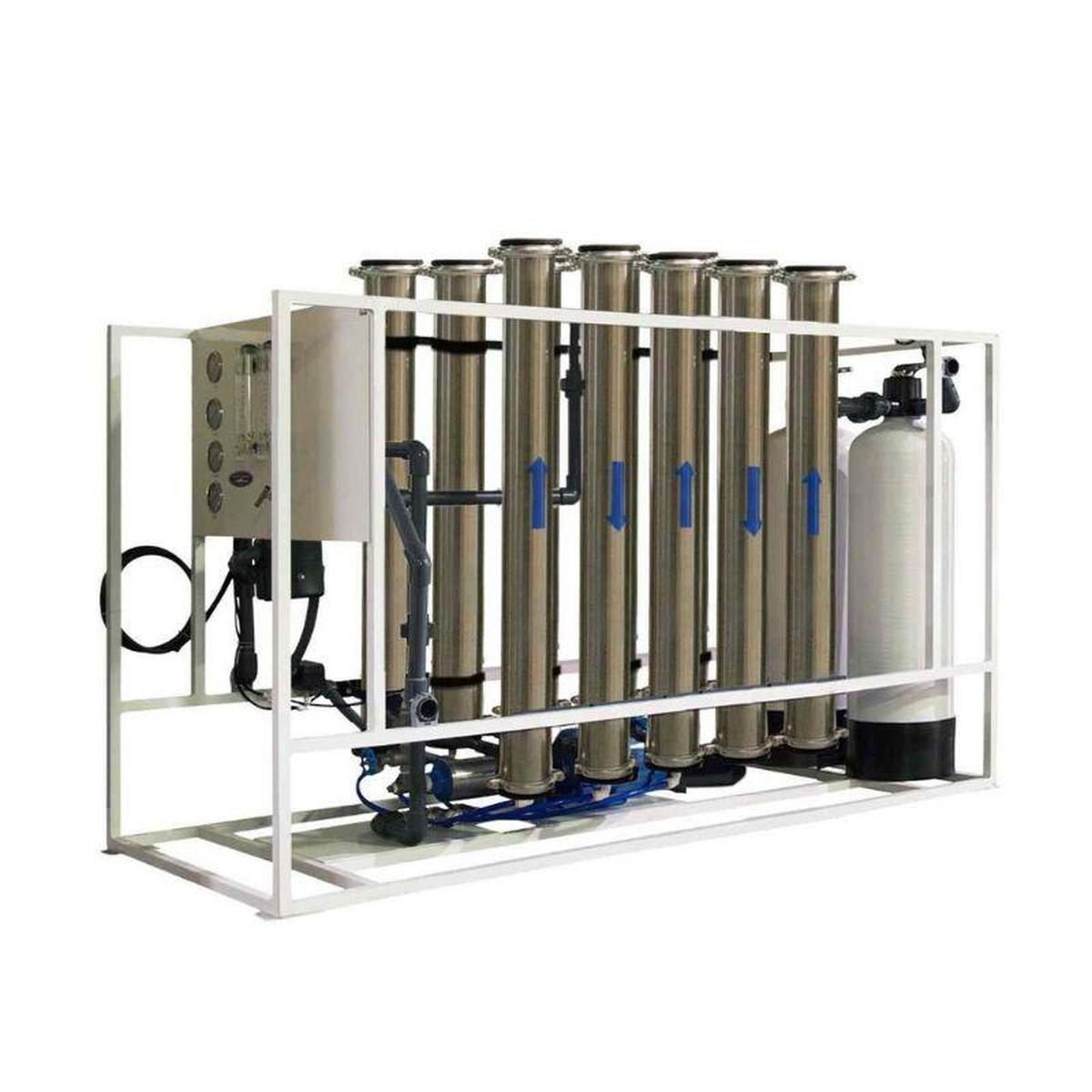

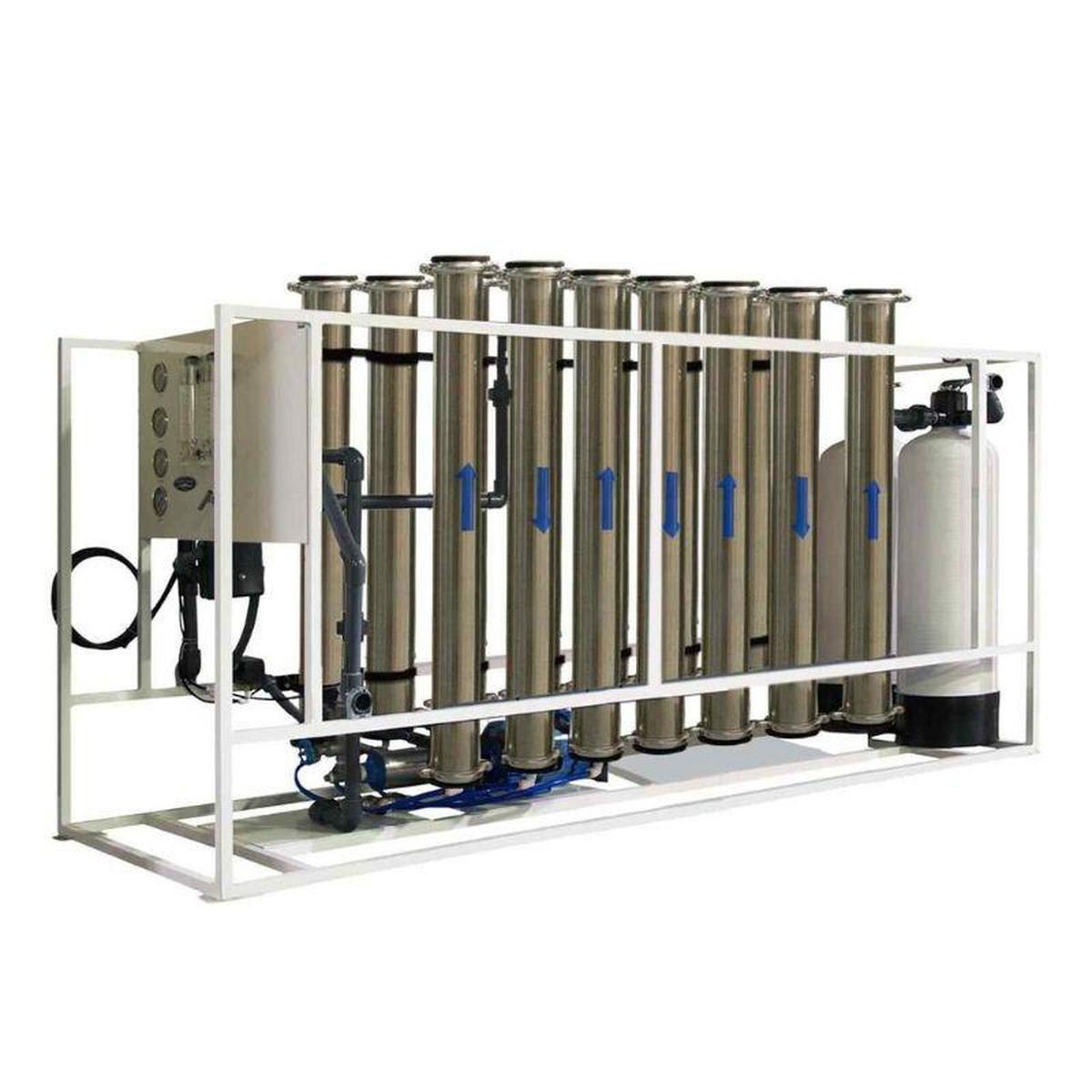

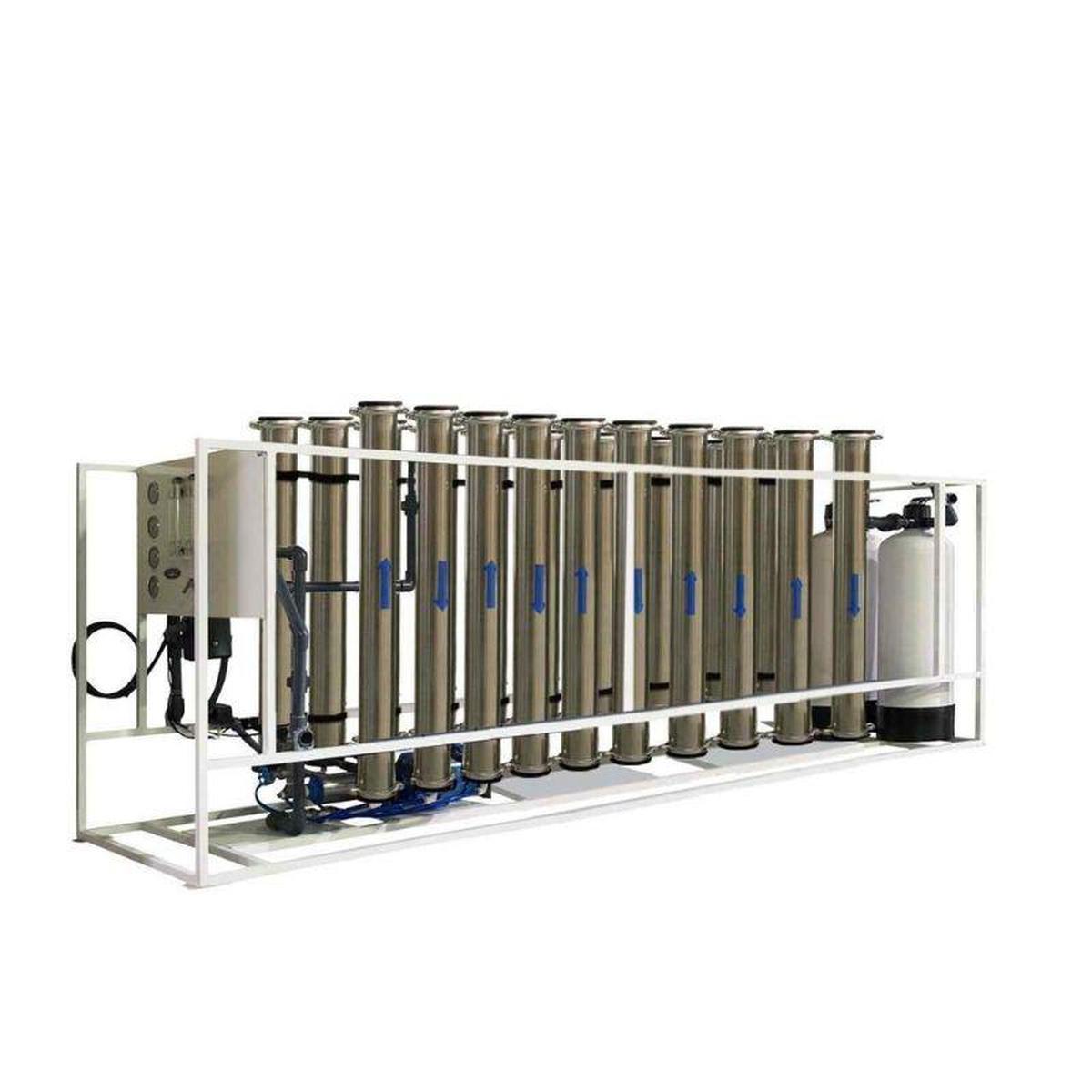

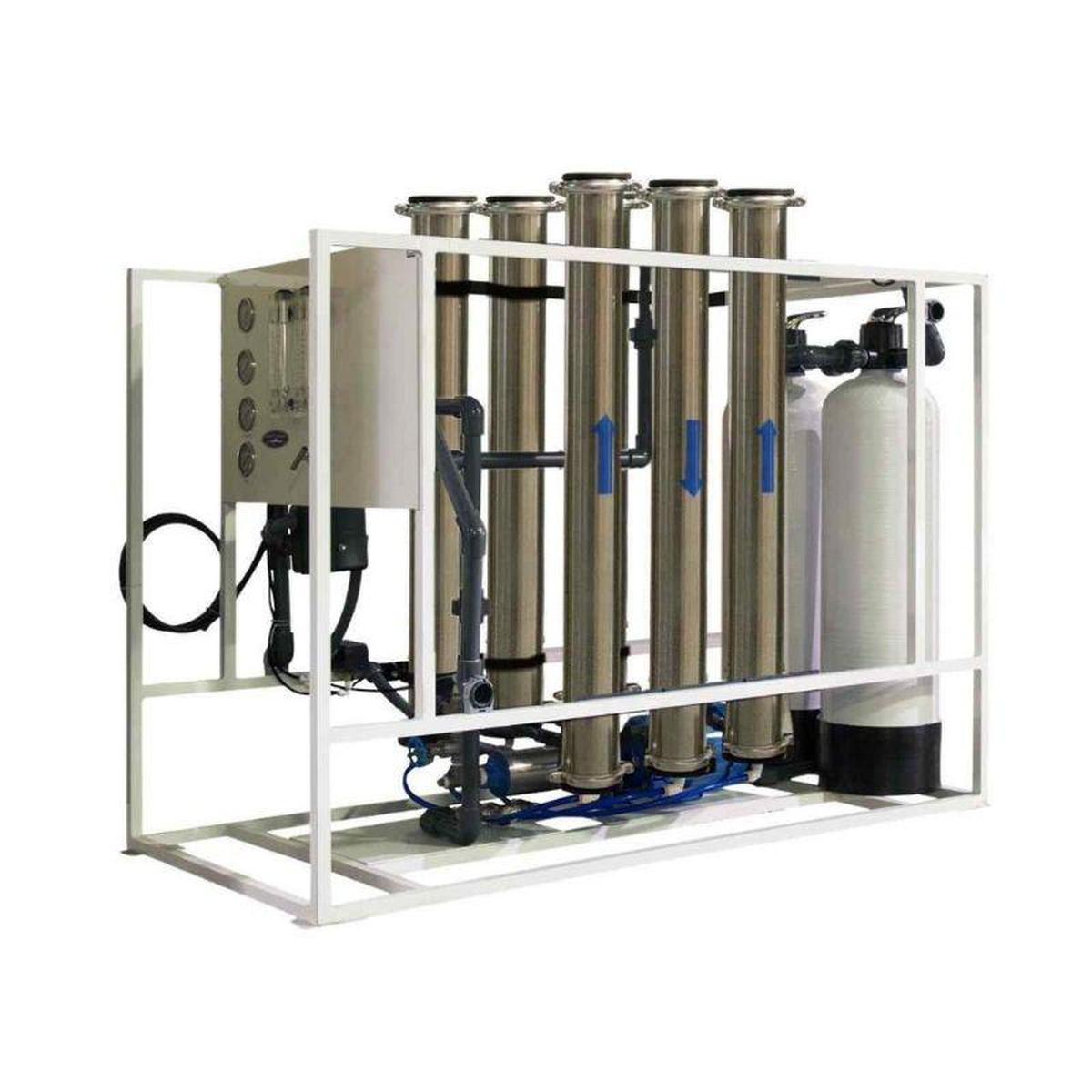

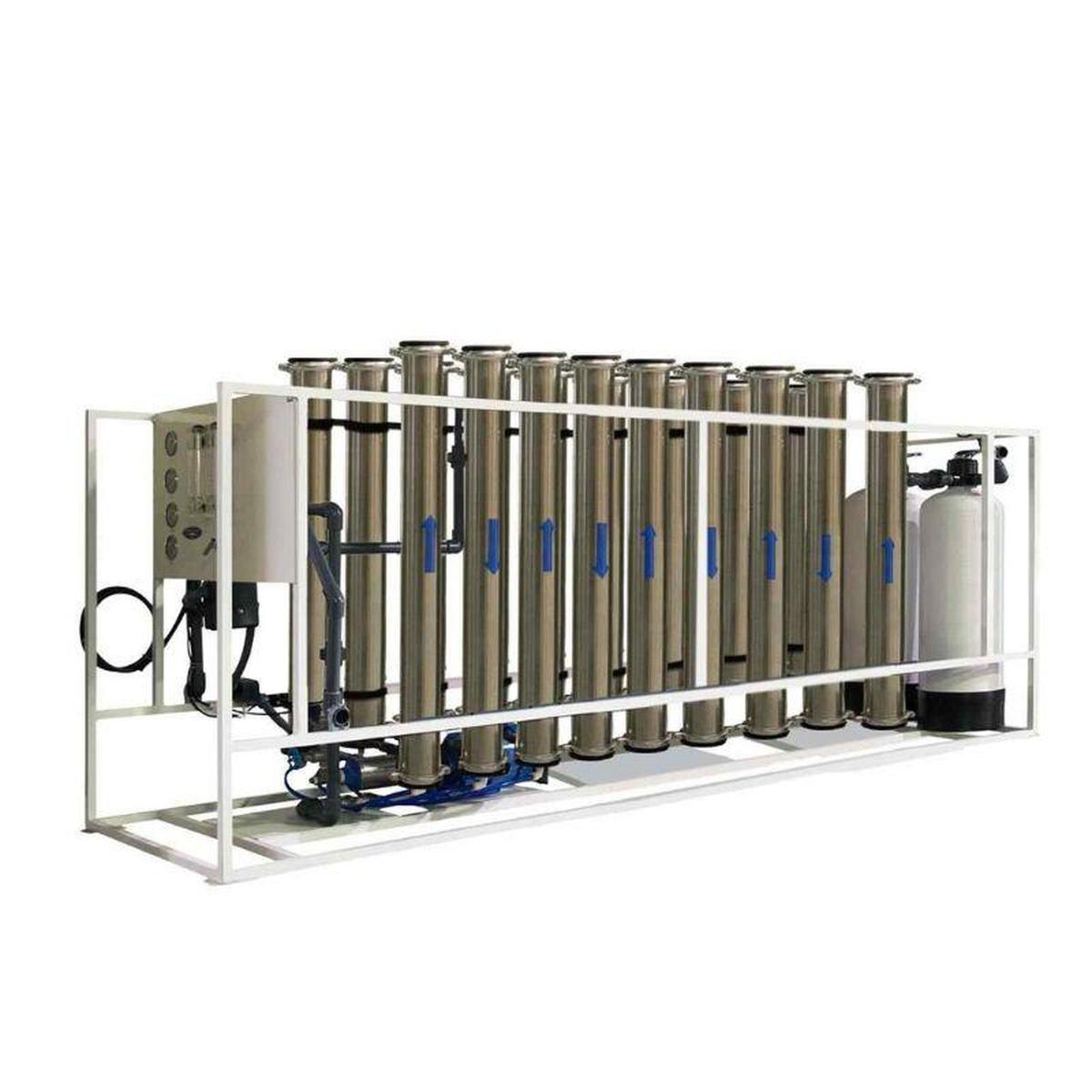

Commercial High-Flow Reverse Osmosis System 10,000 - 50,000 GPD

Commercial High-Flow RO System Standard Features:

• Thin Film Composite Membranes
• Stainless Steel Membrane Housings
• Centrifugal Pump
• 9x48 Vessel with .5 Micron Zeolite (Turbidity/ Sediment Removal) & Coconut Shell Granulated Activated Carbon
• Low & High-Pressure Shut-Off Switch
• Auto Feed Shut-Off
• Flow Control
• Feed Pressure Gauges
• System Pressure Gauges
• Cleaning Ports
• Permeate Flowmeter
• Concentrate Flowmeter
• Permeate TDS Display
• Feed TDS Display
• Heavy Duty Coated Aluminum Frame
• C-150 Microprocessor Controller (standard no ethernet, but optional upgrade)

*Please note that heavier items may be charged shipping due to increased shipping costs.

Commercial High-Flow RO System Benefits:

• Compact Space Saving
• Components Easily Accessible
• Expandable and Lightweight Design
• Fully Equipped and Customizable
• Pre-plumbed, wired, and assembled
• Low Operation Costs
• Low Maintenance Costs
• Easily Maintenance and servicing
• Factory Tested and Preserved
• CE Compliant
• 1-Year Limited Warranty
• Made in the USA

Commercial High-Flow RO System Automatically Controls:

• Motorized Actuated Feed Valve
• Delayed High-Pressure Pump Start-Up
• Automatic Shut-Down at Tank Full
• Low or High-Pressure Fault Shut-Down
• Pre-Treatment Lock-Out
• Feed Water Flush at Shut-Down
• High Product TDS Alarm Shutdown

Commercial High-Flow RO System Upgrades:

All systems include a standard with a wide range of features. There are various options and upgrades available to accommodate a diverse range of water treatment applications. Listed below is a selection of the most popular upgrades.

• Stainless-Steel Rotary Vane Pump: Offers a longer lifespan and increase resistance to high TDS feed water and corrosive materials, such as dosing chemical and antiscalants.
• Concentrate recycle valve: Allows for an increase of RO systems efficiency by recycling back wastewater into the feed stream and increasing the system recovery
• SWP Digital Dual TDS Controller: Allow for simultaneous monitoring of both feed TDS and permeate TDS levels, helping to monitor the RO system salt rejection and membrane performance.
• SWP Digital TDS Controller: Allows for monitoring either feed TDS and Permeate TDS levels
• SWP Digital TDS/Conductivity Controller: Allows for the monitoring of the RO permeate water TDS and conductivity levels, useful in evaluating overall system performance.
• C-150 Computer Controller with Feed Flush: Allow for pre-treatment lockout functionality, tank level input, features a convenient LED status display, and alarm function.
• Chemical Pump Outlet: Provide an integrated power source with the RO system for the connection of a chemical feed pump.
• Blending Valve: Allows for a mixture of feed water into final RO permeate water to achieve desirable permeate TDS.
• Permeate Sample Port: Allows for evaluation of individual membrane performance in on RO system and aids in system troubleshooting and maintenance.
• 240V 50-60Hz or 110V 50-60Hz: Allow for selecting sufficient voltage and hertz use requirement.
• Single Wood Crate
