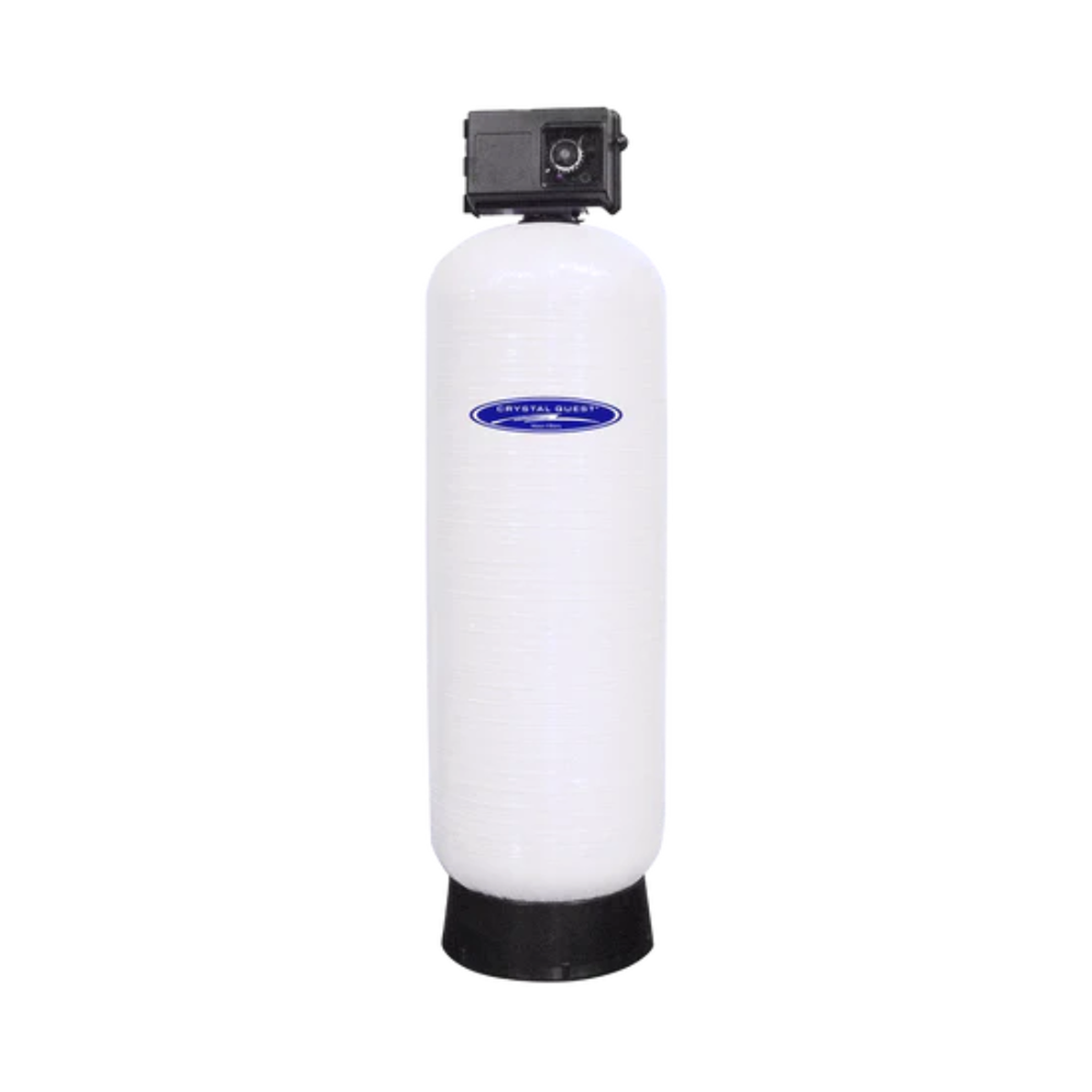

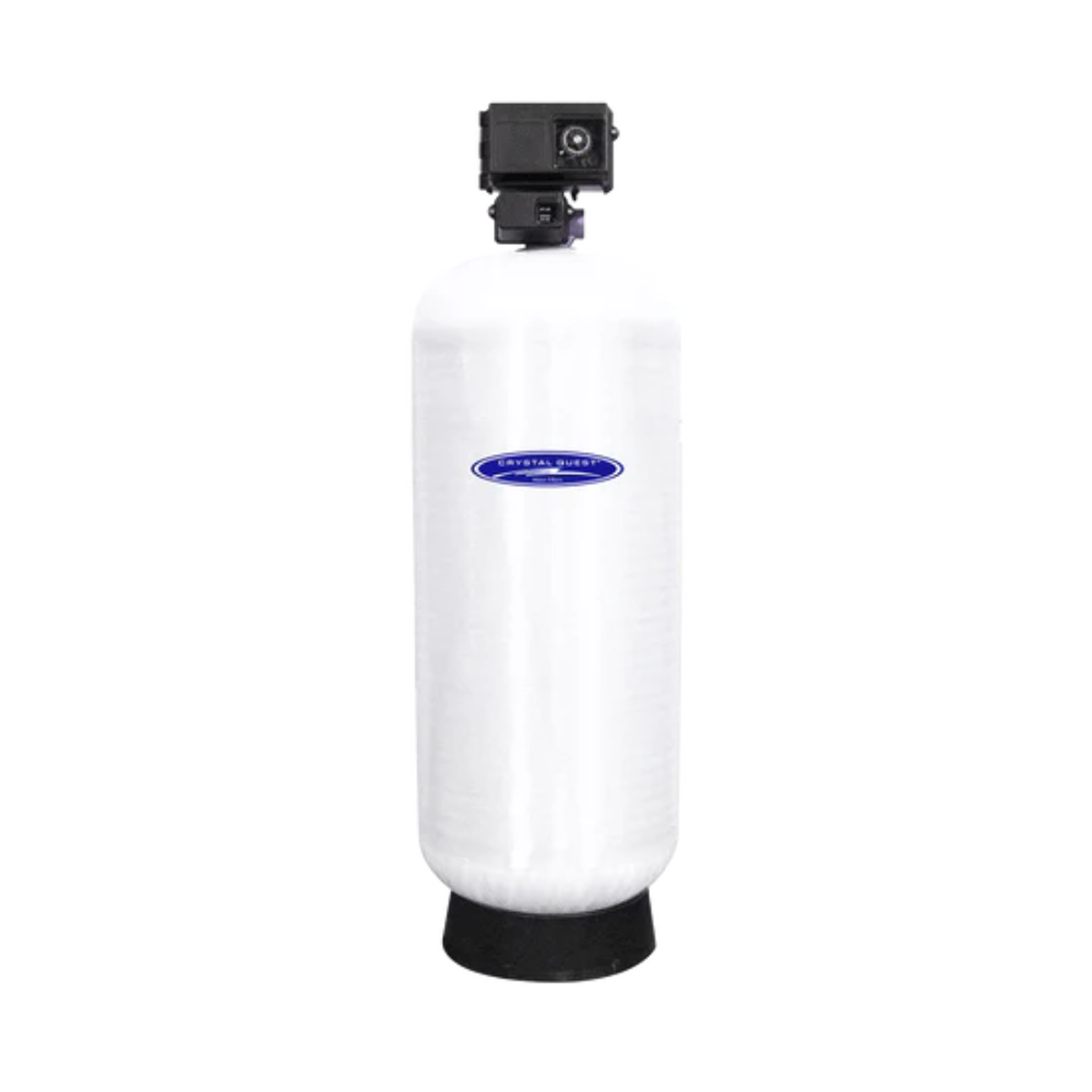

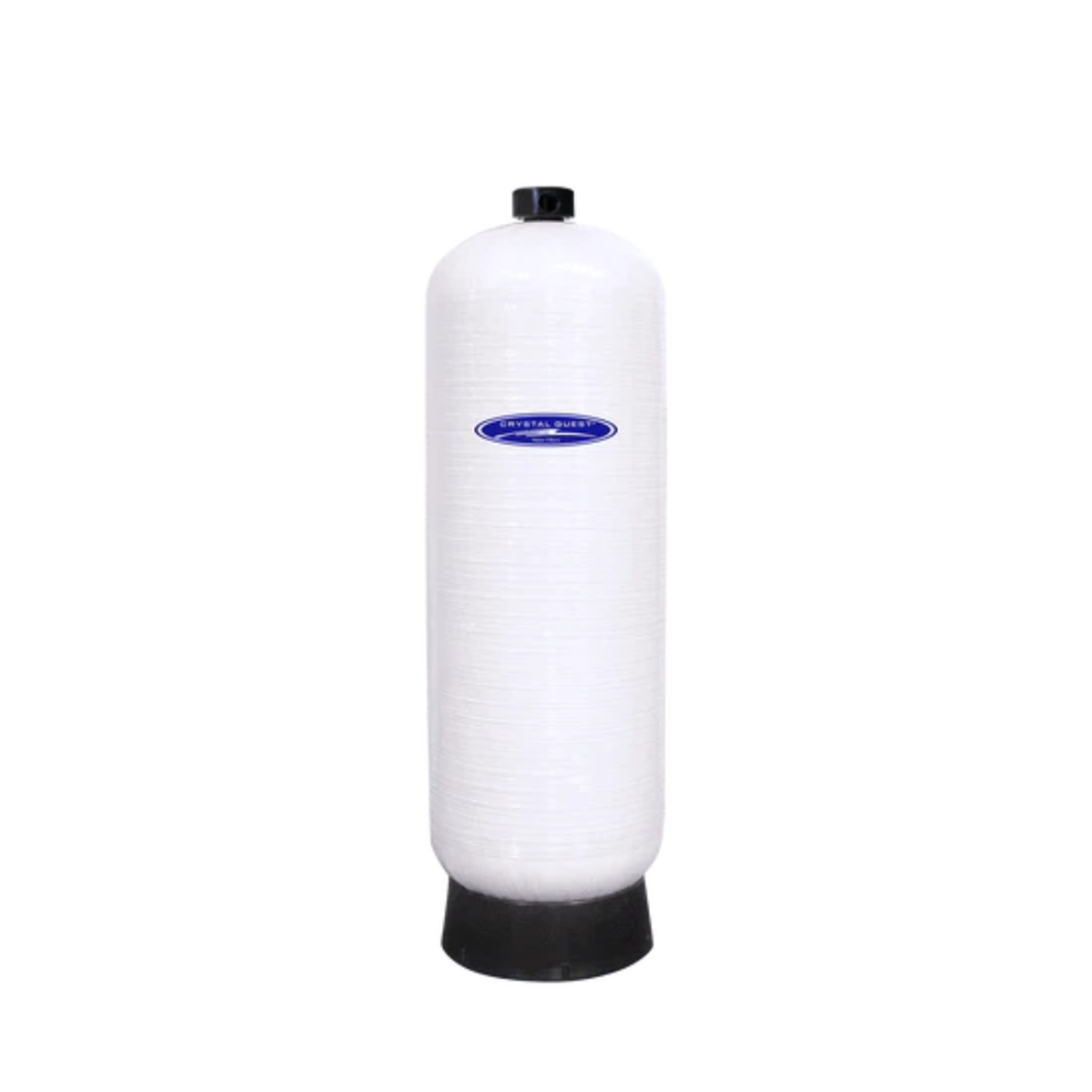

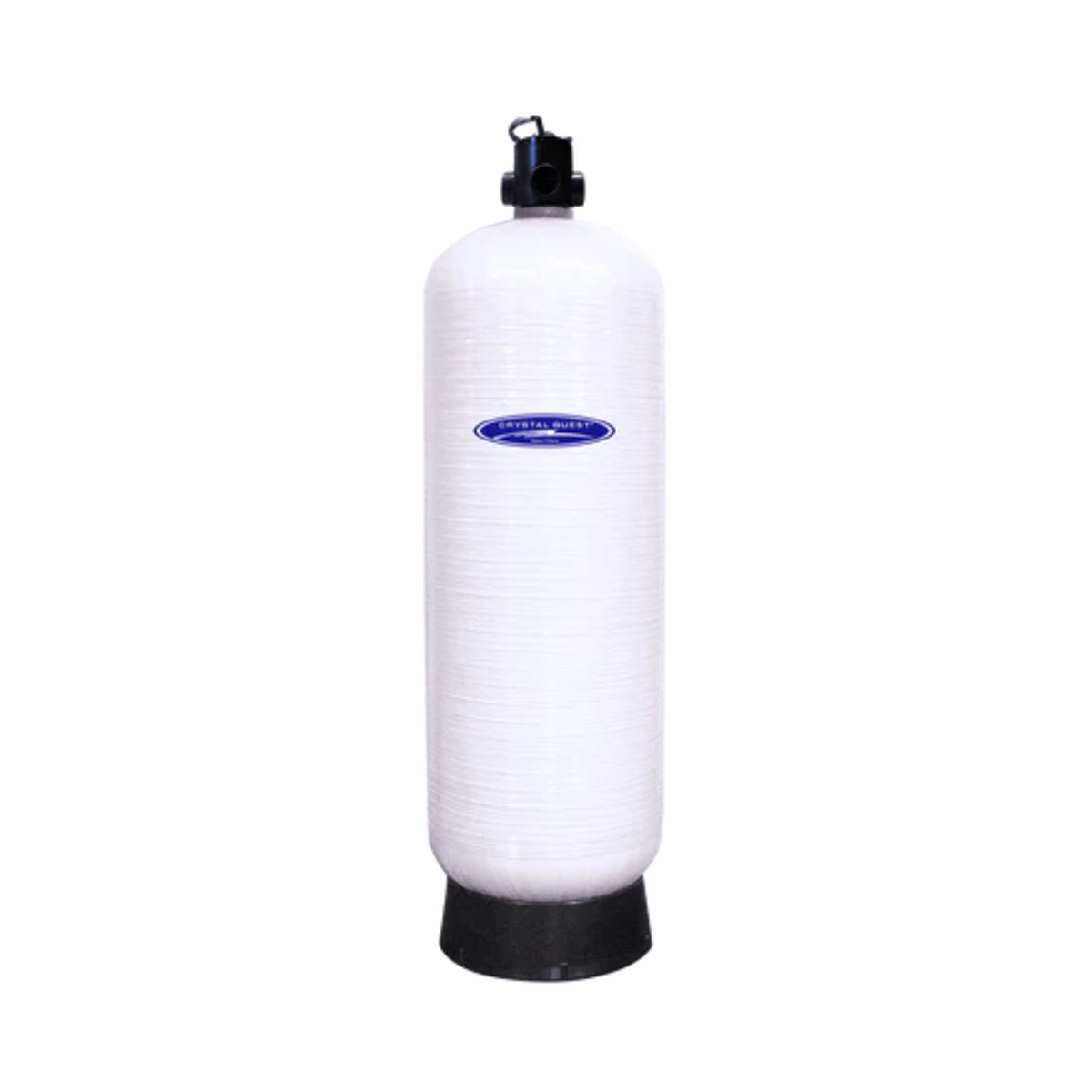

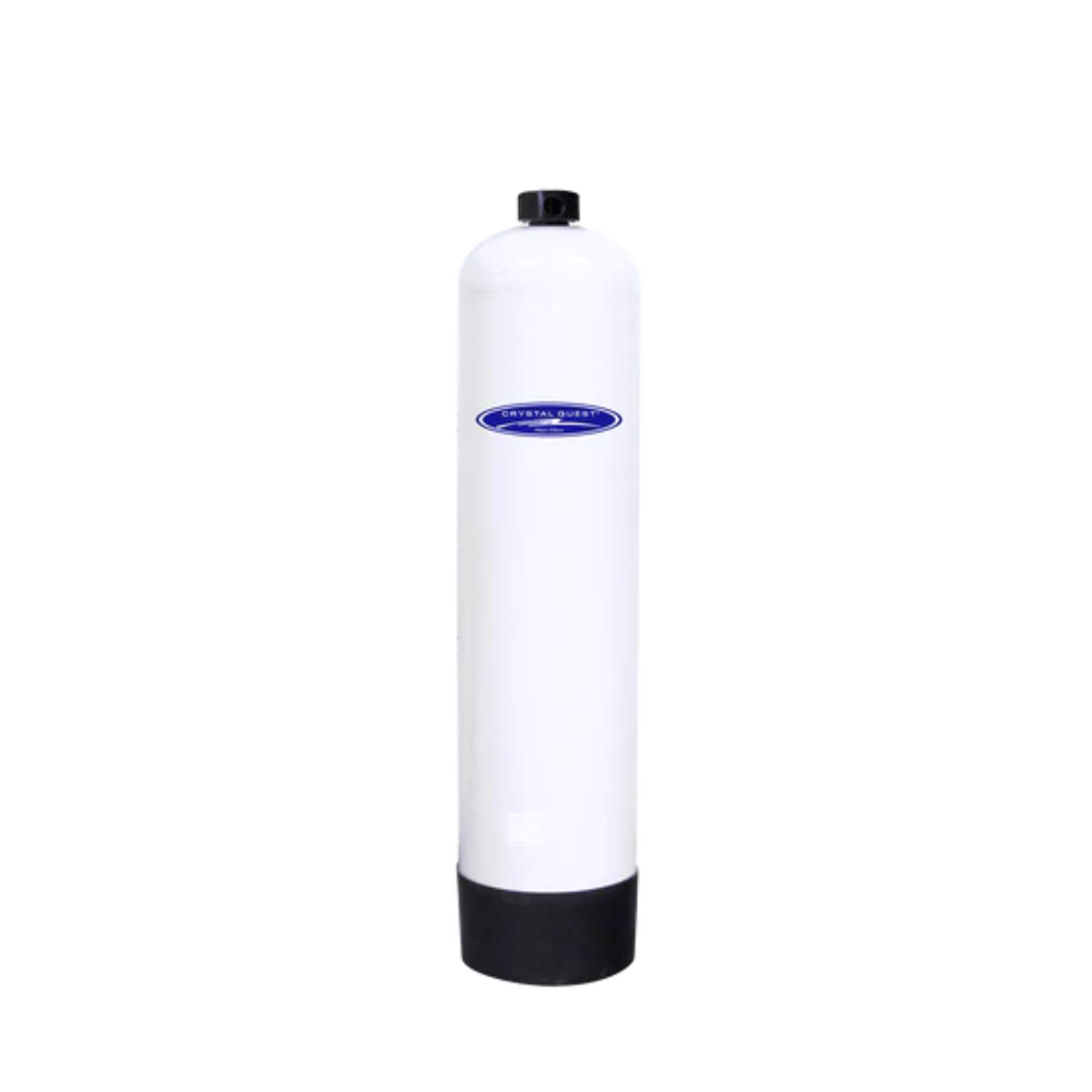

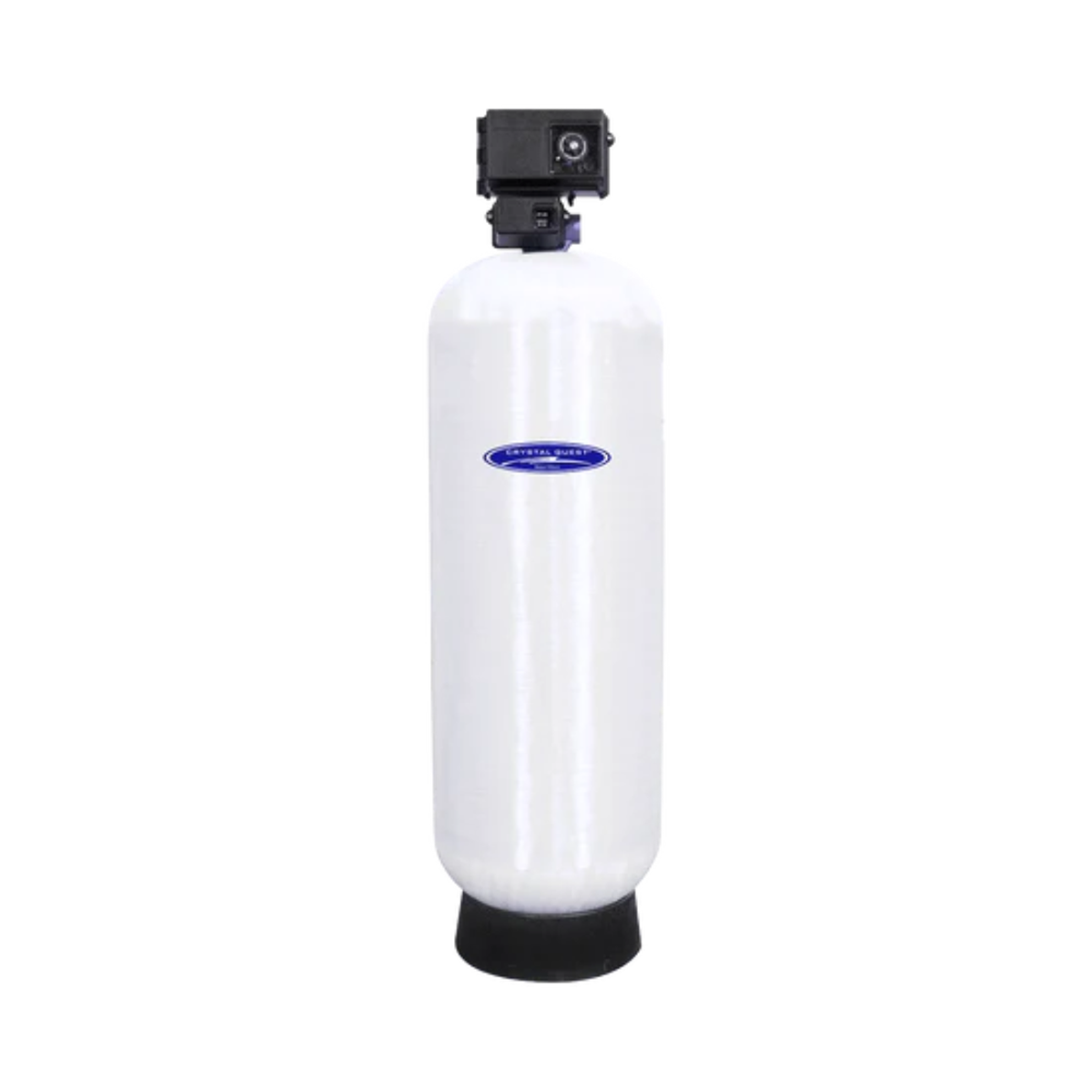

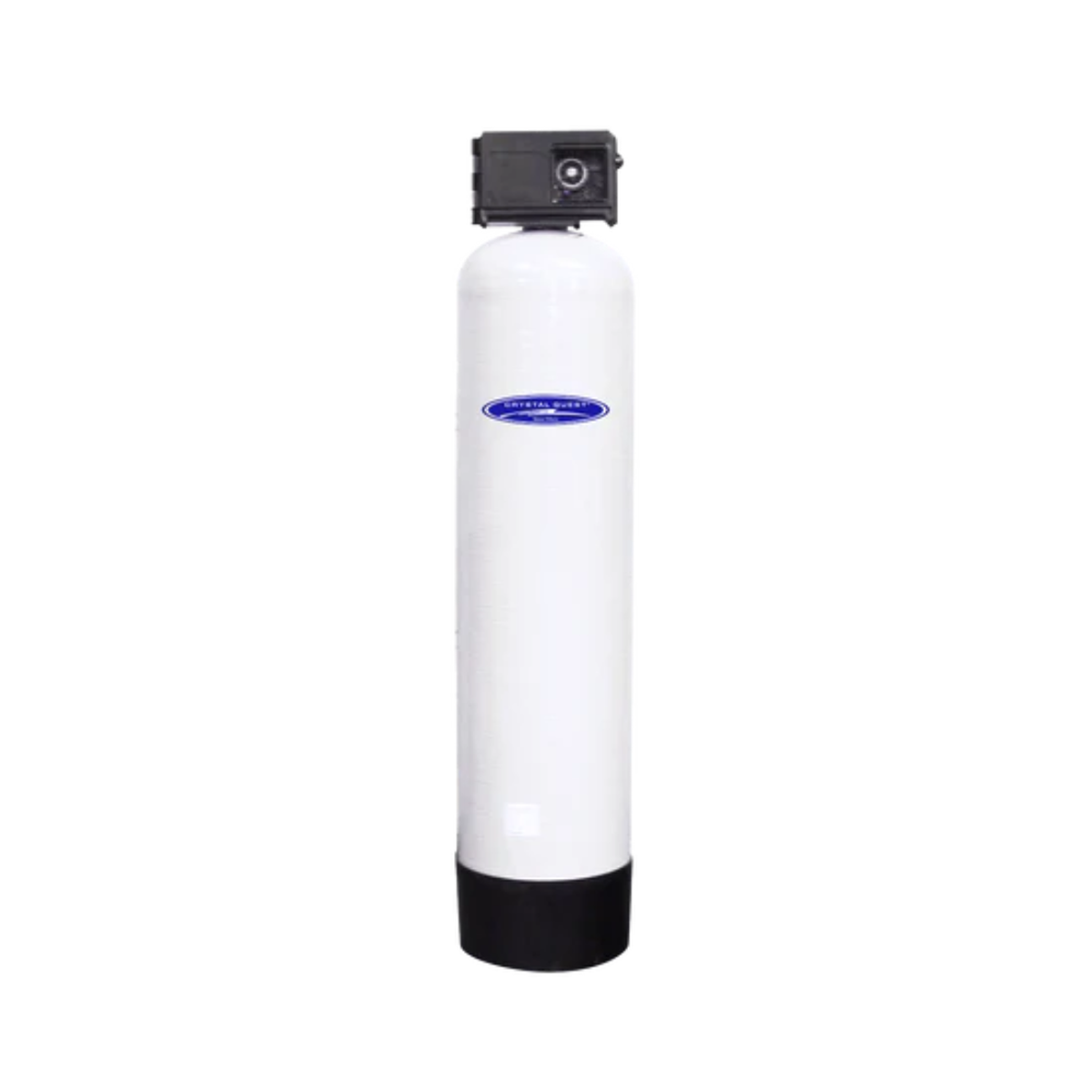

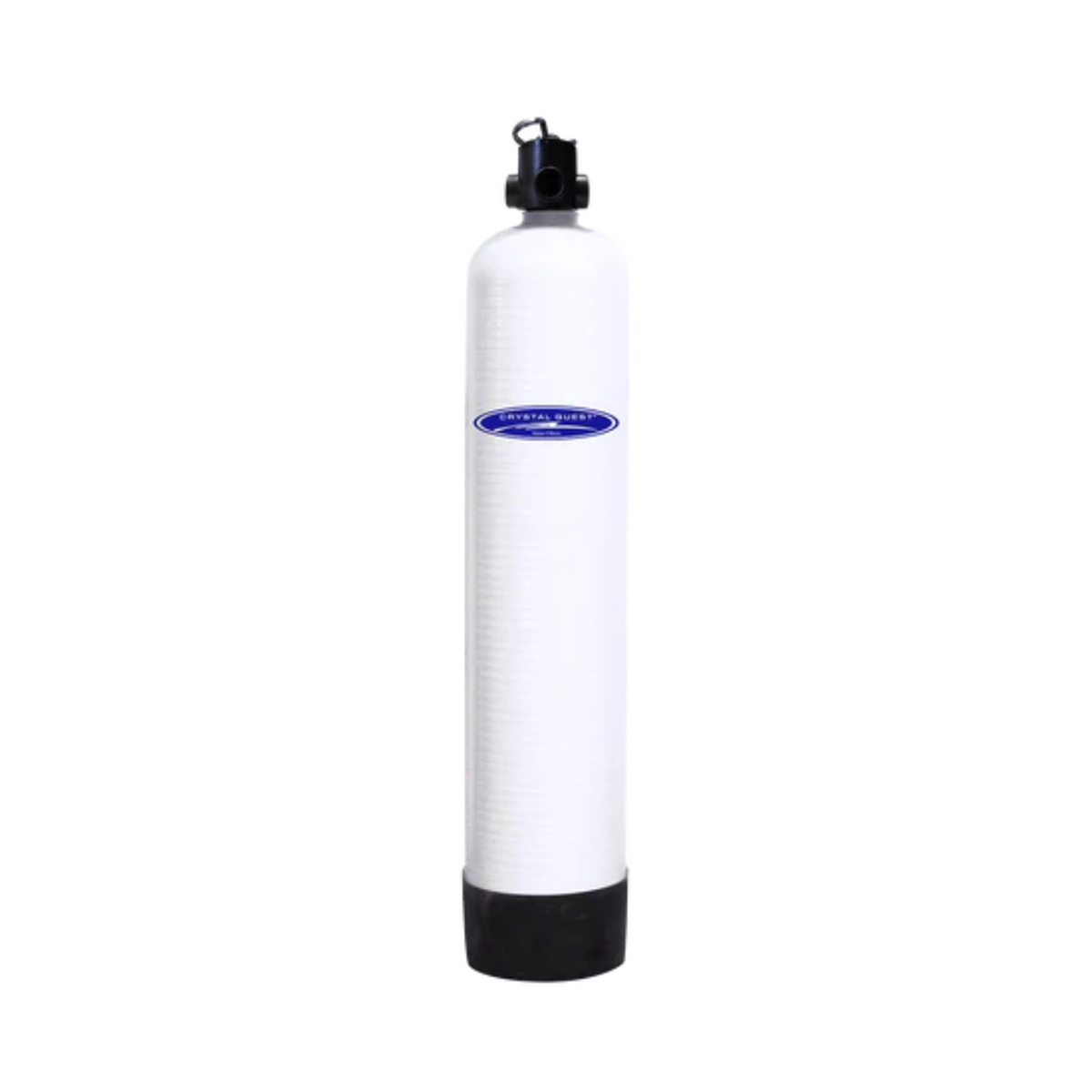

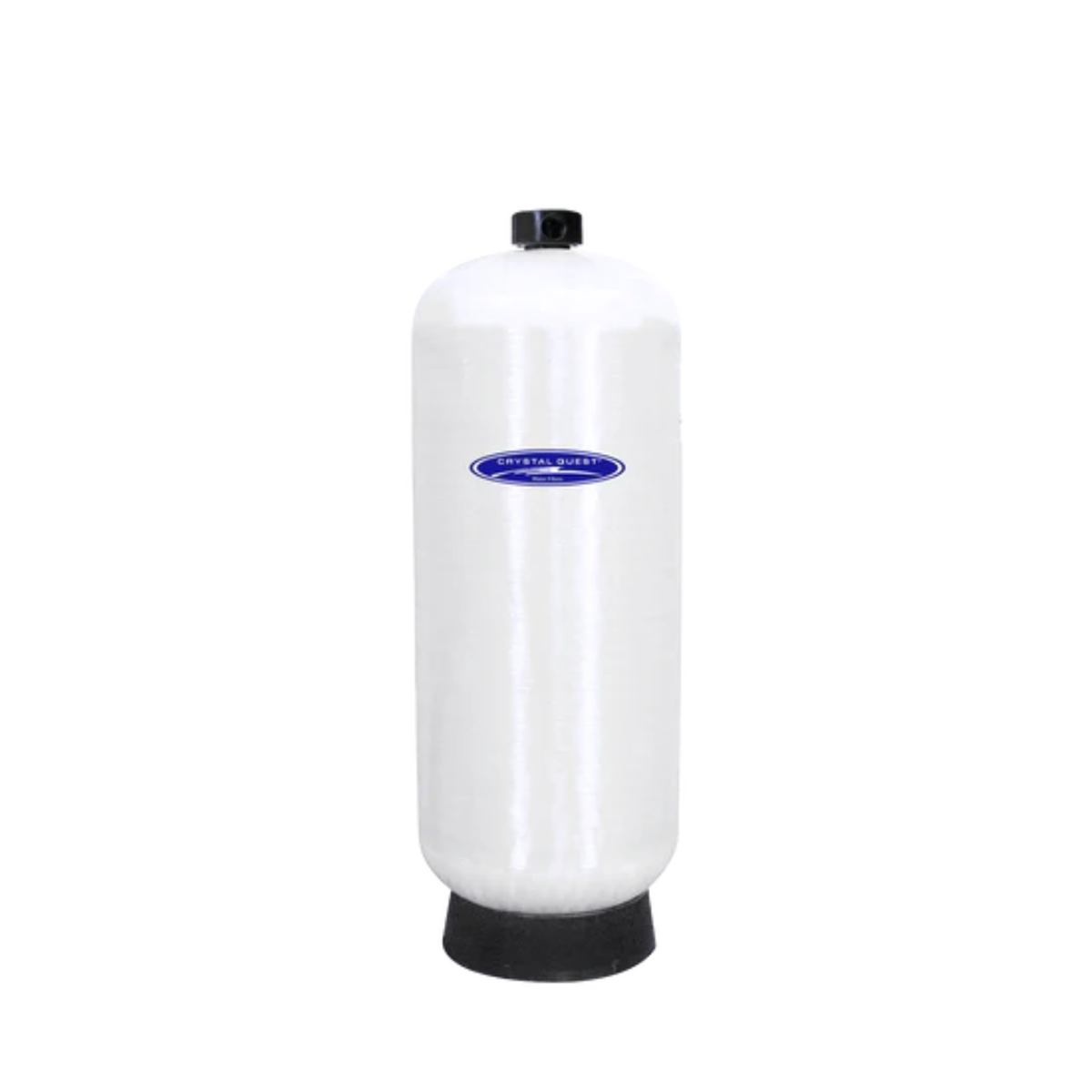

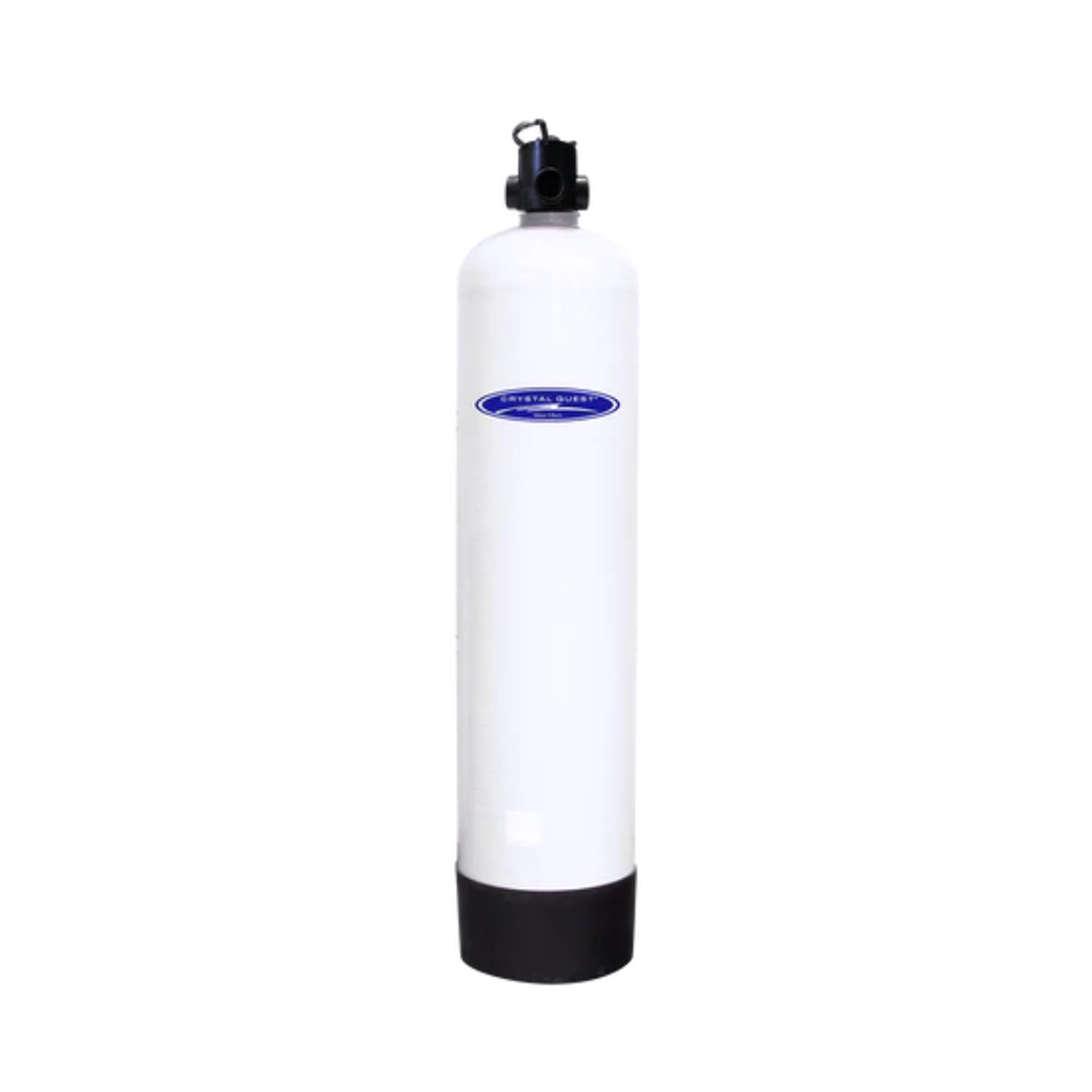

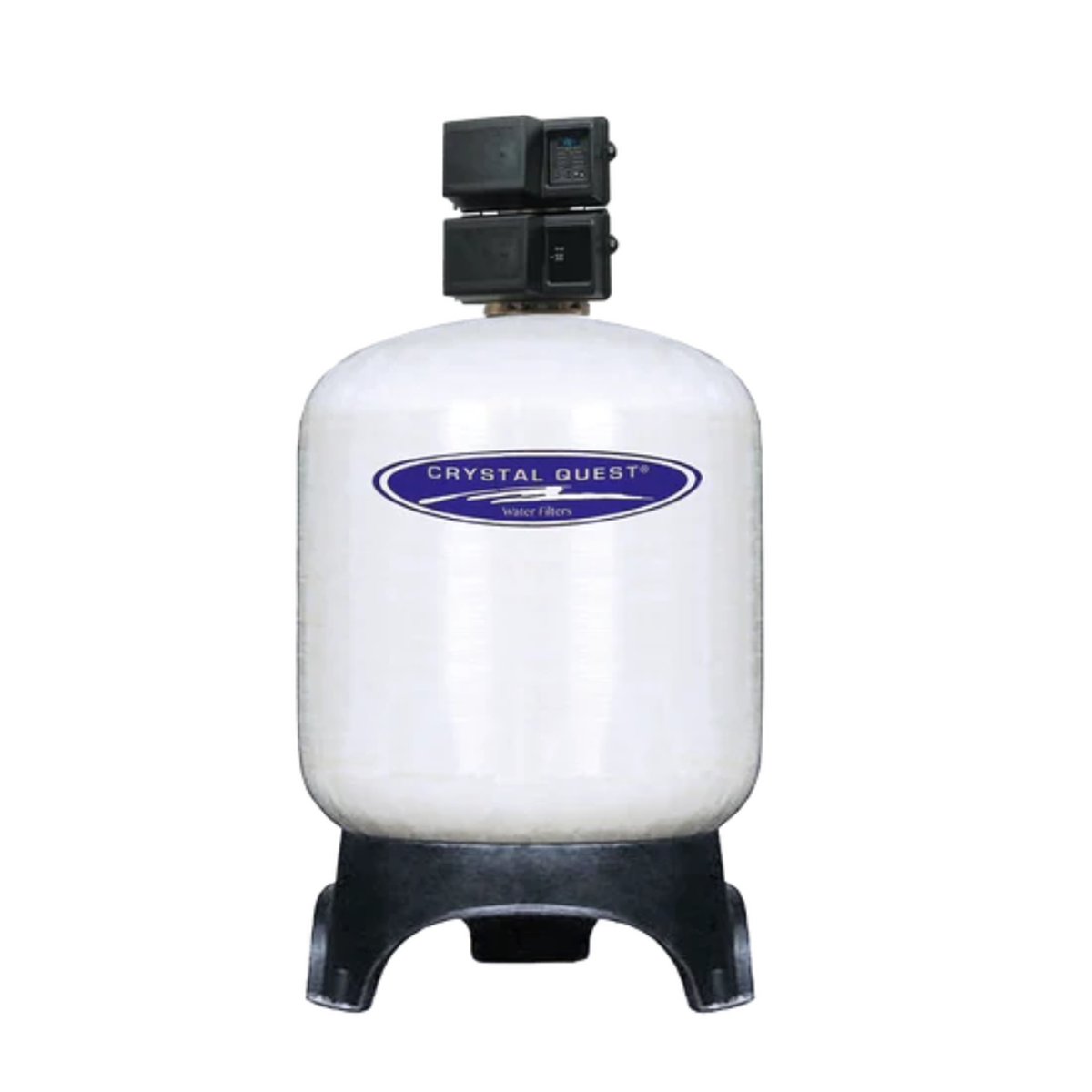

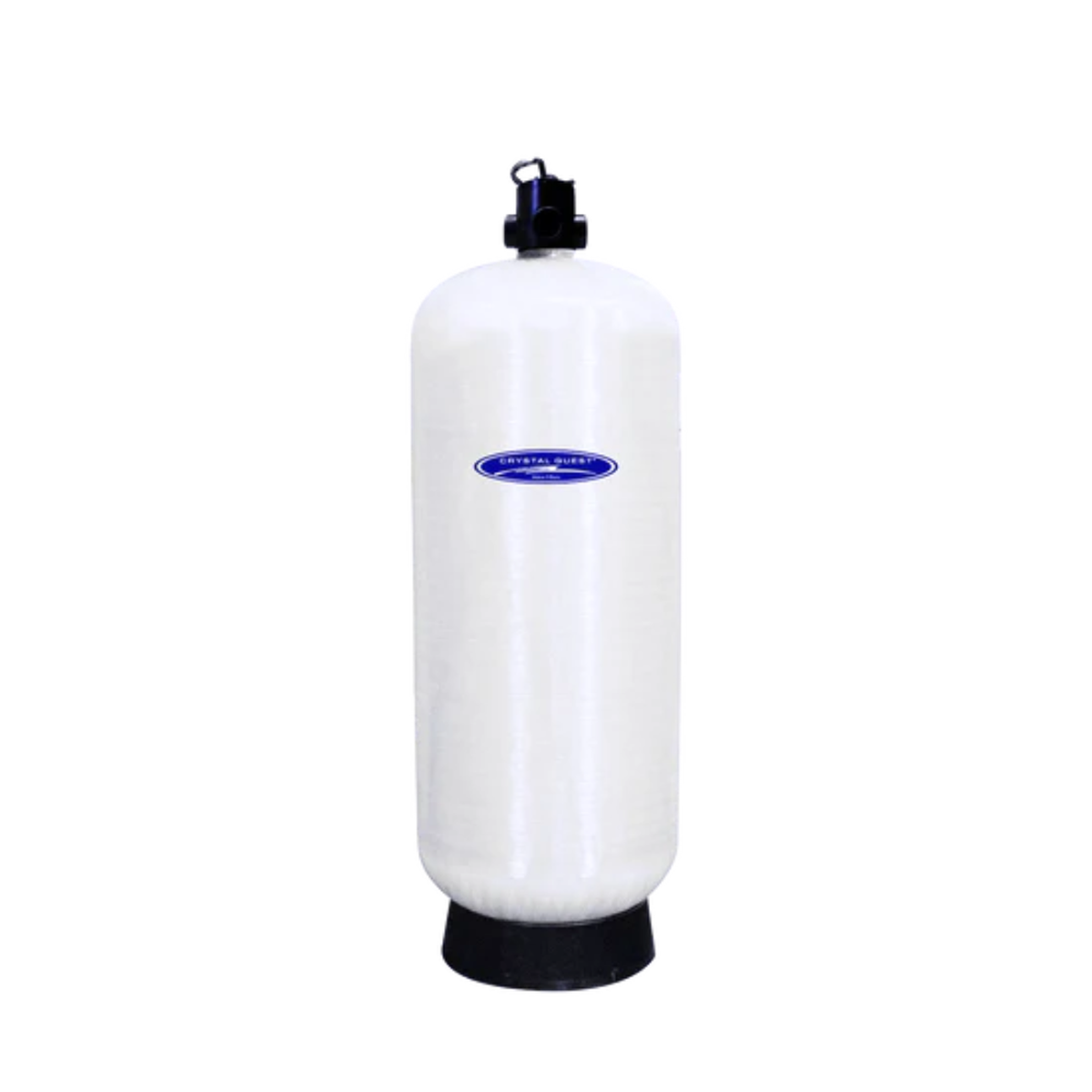

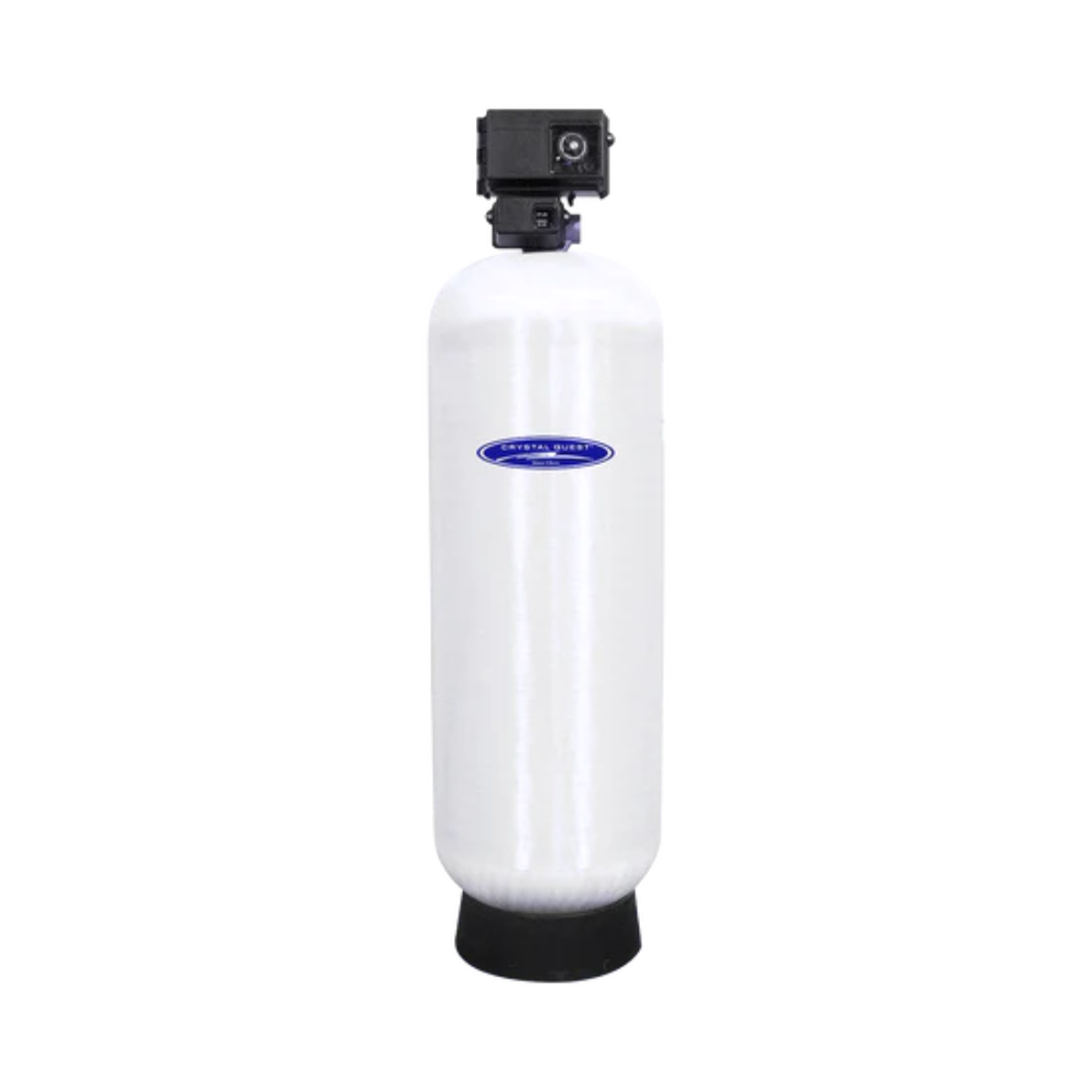

The Crystal Quest Commercial Demineralizing (DI) Water Filtration System is an advanced solution designed to meet the stringent water purity requirements of commercial and industrial applications.
This system utilizes deionization, a process that removes dissolved ionic contaminants from water, producing high-purity water for various sensitive applications.
SKU: CQE-RM-05020
De-Ionizer is a mixed bed of ion exchange media to strip ions and lower conductivity, resistant in-conductivity of water in addition to de-mineralizing & lowering the sensitivity of the water.
| Service Flow Rate (GPM) | 11 | 13 | 15 | 20 | 35 | 60 | 75 | 185 | 200 | 245 | 390 |
| Model | CQE-CO-02160 | CQE-CO-02161 | CQE-CO-02112 | CQE-CO-02113 | CQE-CO-02114 | CQE-CO-02115 | CQE-CO-02116 | CQE-CO-02117 | CQE-CO-02118 | CQE-CO-02119 | CQE-CO-02705 |
| Peak Flow GPM | 13 | 15 | 22 | 41 | 60 | 95 | 140 | 250 | 270 | 280 | 450 |
| Backwash Flow GPM | - | - | 5 | 7 | 12 | 15 | 25 | 35 | 50 | 65 | 75 |
| Pipe Size | 1" | 1" | 1" | 1.5" | 1.5" | 2" | 2" | 2" / 3" | 3" | 3" | 3" |
|
Electronic Control Valve |
5600 | 5600 | 2510 | 2850 | 2850 | 2900 | 2900 | 3150 / 3900 | 3900 | 3900 | 3900 |
| Demineralizing Multi-Media | 1.5 ft³ | 2 ft³ | 3 ft³ | 4 ft³ | 7 ft³ | 10 ft³ | 15 ft³ | 20 ft³ | 30 ft³ | 40 ft³ | 60 ft³ |
| PSI Range | 35-60 | 35-60 | 35-60 | 35-60 | 35-60 | 35-60 | 35-60 | 35-60 | 35-60 | 35-60 | 35-60 |
| Mineral Tank Size (in.) | 10" x 54" | 12" x 52" | 14" x 65" | 16" x 65" | 21" x 62" | 24" x 72" | 30" x 72" | 36" x 72" | 42" x 72" | 48" x 72" | 63" x 83" |
| Space Required (in.) (D x H) | 12" x 64" | 14" x 62" | 16" x 75" | 18" x 75" | 23" x 84" | 24" x 95" | 32" x 95" | 40" x 192" | 46" x 192" | 52" x 192" | 67" x 203" |
| Quartz (lbs.) | 15 | 20 | 30 | 40 | 70 | 100 | 150 | 200 | 300 | 400 | 600 |
