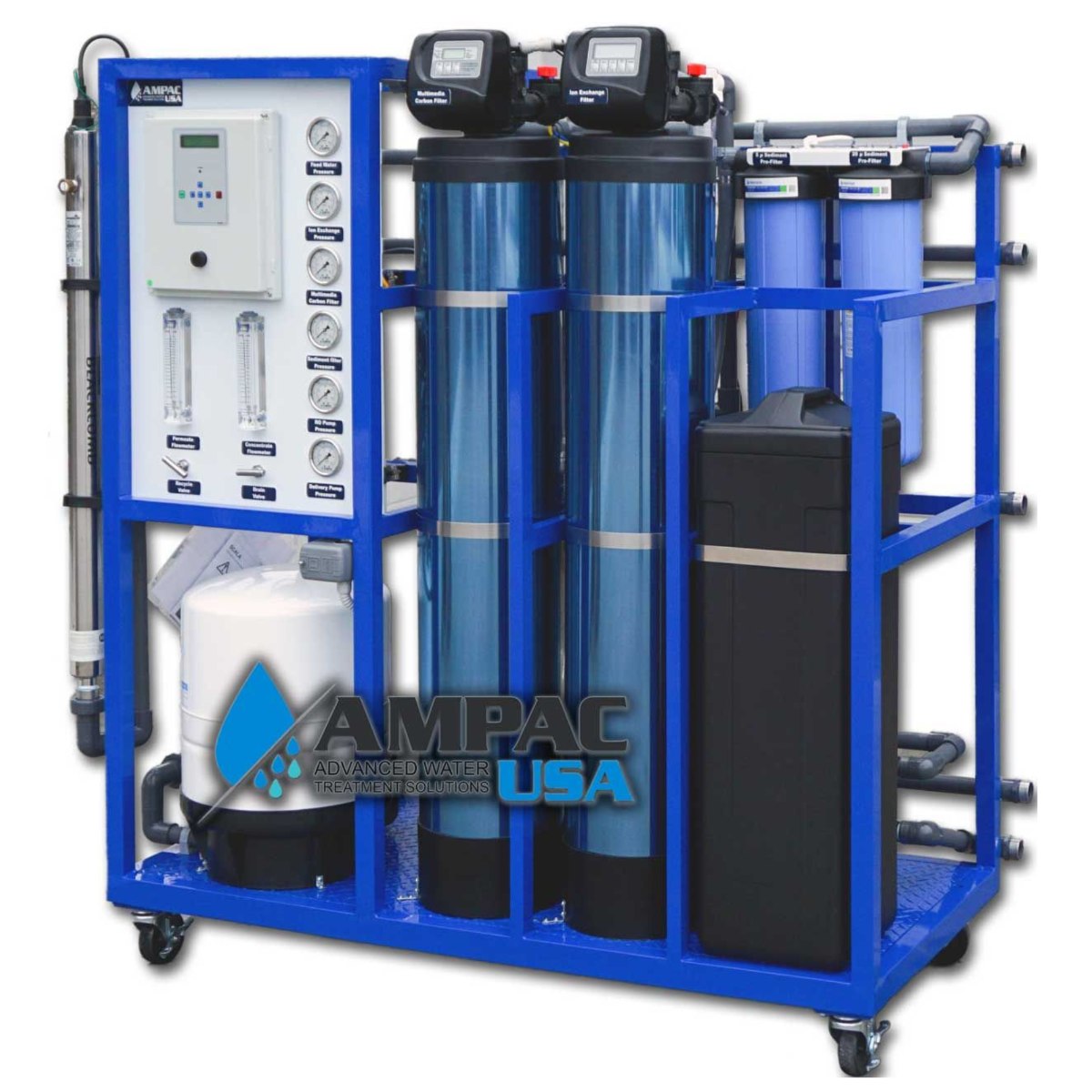

High‑Output Purity with Ampac 3000 GPD RO System
The Ampac AP3000-LX Commercial Turnkey Reverse Osmosis System delivers 3,000 gallons per day of high-purity water and is built to meet the rigorous demands of commercial users across a wide range of industries. Backed by 28 years of engineering expertise, this system is ideal for applications such as restaurants, coffee shops, microbreweries, supermarkets, car washes, misting systems, and more.
Designed for use with brackish and well water sources, the AP3000-LX is part of Ampac USA’s LX Series—renowned for its reliability, serviceability, and consistent performance with minimal user intervention. This is made possible by its rugged, space-efficient design and use of premium materials, including:
- powder-coated welded aluminum frame
- for corrosion resistance and long-term durability
The AP3000-LX integrates advanced Thin Film Composite (TFC) membrane technology and a proven hydraulic configuration to ensure optimal output and water quality. Its user-friendly layout also makes servicing straightforward, helping commercial operations stay up and running without unnecessary downtime.
Built for reliability and engineered to perform, the Ampac AP3000-LX is the go-to solution for businesses that demand high-quality water—day in and day out.
3000 GPD Commercial Turnkey RO System Technical Specifications
| Frame |
Powder Coated One-Piece Aluminum w/Diamond Plate |
| Membranes |
(2) ea TFC 4" x 40" |
| Vessels |
4" x 40" Stainless Steel |
| Pump |
Goulds Multi-Stage Jet Pump with Safeguards (SS option) |
| Gauges - Glycerin Filled |
Pre-Filter PSI, Post-Filter PSI, Booster Pump PSI |
| Valves |
System Pressure, Recycle Pressure |
| Switches |
Low PSI Cutout, Tank Full Cutout |
| Electrical |
110 or 220 V, 50 or 60 Hz, single or Three phase |
| Motor |
1 HP - 1725 rpm |
| Connections |
1" Quick Tubing Connectors |
| Capacity per US Gallon |
2.08 GPM - 3,000 GPD |
| Capacity per Liter |
7.90 LPM - 11,350 LPD |
| Operating Pressure |
170 - 225 psi |
| Typical Recovery |
33% - 50% |
| Typical Rejection |
99% |
| Max Feed TDS - Hardness |
2500 ppm - 15 grains For Municipal Water Design |
| Max Feed TDS - Hardness |
10,000 ppm - 25 grains For Brackish Water Design |
| Max Feed Temp |
113 degrees F |
| Feed pH Range |
2-11 |
| Max Chlorine |
less than 0.1 ppm |
| Dimensions |
52" wide x 24" deep x 65" ht. |
| Weight |
320 Lbs. / 145 Kgs. |

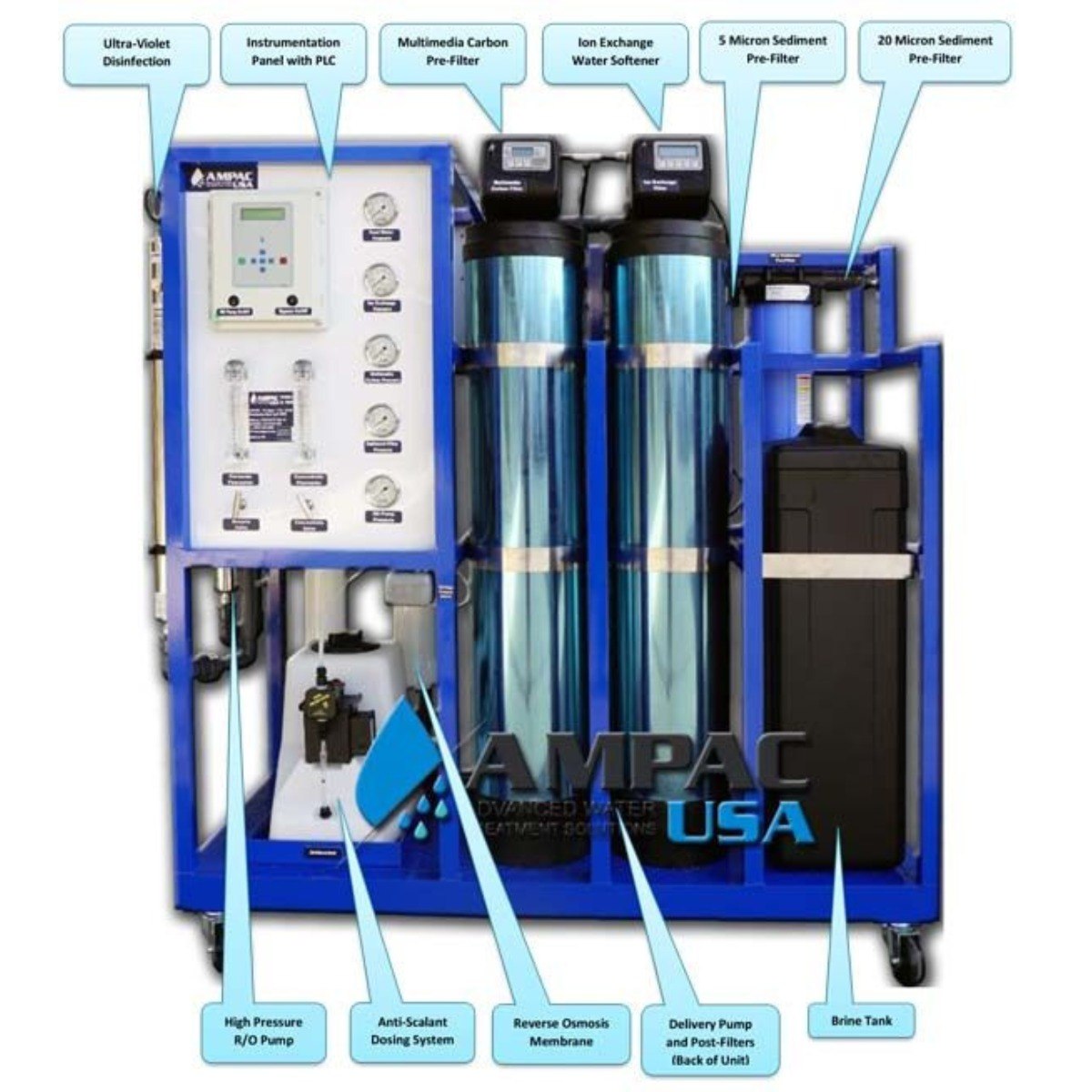

Make of System: Fully automated turnkey water purification system, including pre-treatment modules and a reverse osmosis system, fully built on a powder-coated welded aluminum skid with a diamond plate base. Constructed using good industrial practices and in accordance with each component manufacturer’s guidelines.
Model of System: AP3000-LX
Origin: Made in the USA
Backwash & Regeneration Cycles: The Ion exchange system operates on a metered basis. Multimedia system operates on a timer basis and is adjustable up to 120 minutes per cycle.
System Production Conditions: Designed based on the following feed water conditions: 10,000 ppm NaCl, 77°F (25°C) operating temperature, and a pH range of 3.0–11.0. Actual feed water analysis may require special consideration, which may affect final design and pricing.
Delivery Terms: System is ready to be shipped, typically within 2–3 weeks from the date of purchase order receipt.
