Ampac 1500 GPD Commercial Turnkey Reverse Osmosis System

Efficient Water Treatment with Ampac 1500 GPD RO Solution

The Ampac 1500 GPD Commercial Turnkey Reverse Osmosis System (Model AP1500-LX) is a fully equipped, high-performance brackish water RO solution built for reliability, durability, and ease of use. Delivering up to 1,500 gallons per day (5.7 m³/day), this system is ideal for a wide range of commercial water purification needs.

Engineered for freestanding installations, the AP1500-LX is designed with space efficiency in mind—perfect for tight utility areas. Its robust construction features a powder-coated welded aluminum frame, aluminum diamond plate base, and stainless steel pressure vessels and hardware—ensuring superior structural integrity and corrosion resistance.

The system integrates state-of-the-art Thin Film Composite (TFC) membrane elements and a proven hydraulic design to deliver consistent, high-quality output with minimal user intervention. Quick-connect tube fittings on all ports simplify installation and serviceability, making this system incredibly user-friendly.

With its solid build and dependable performance, the Ampac AP1500-LX sets the standard for commercial-grade water purification systems.

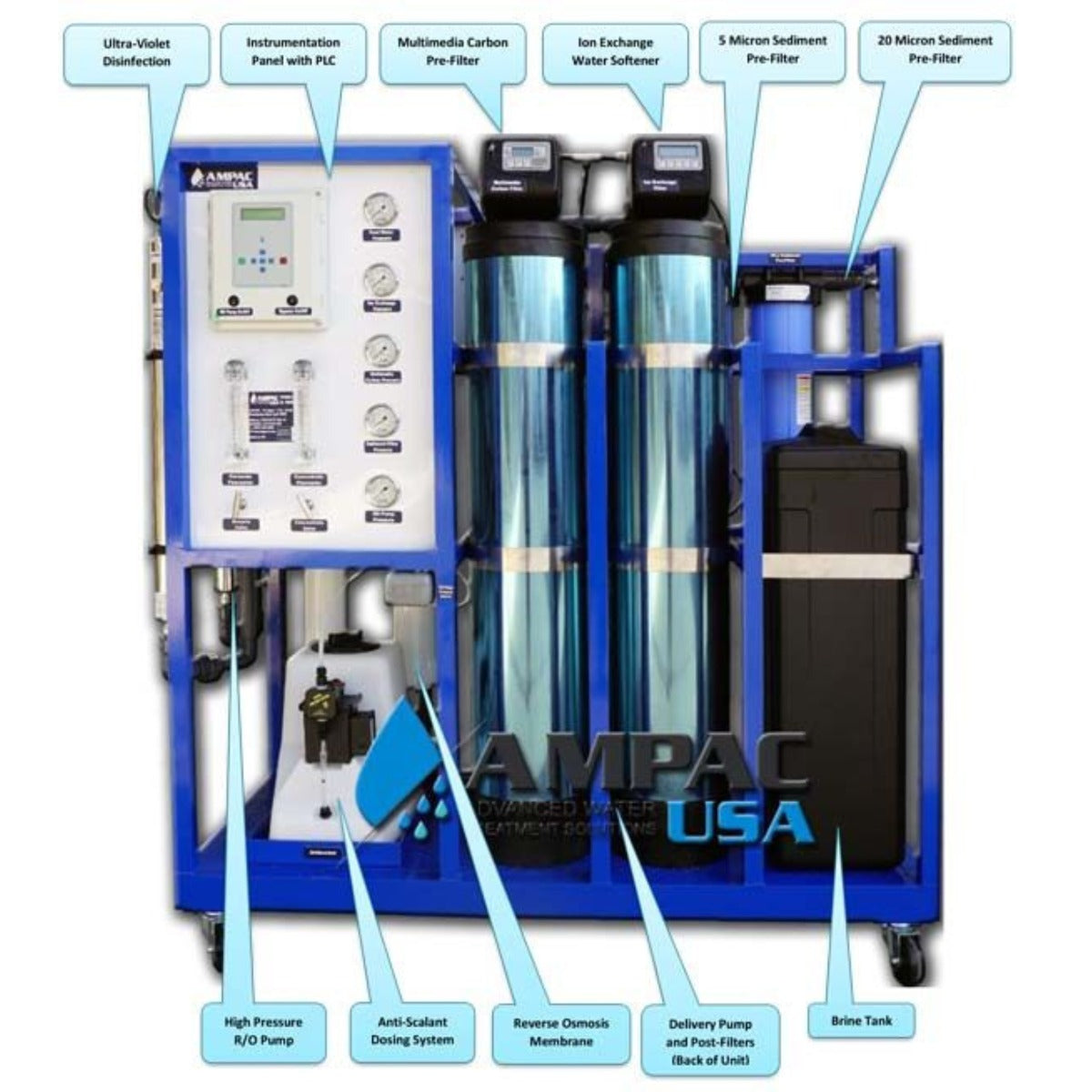

Ampac AP1500-LX 1500 GPD RO System Standard Features

• Spin-down screen filter with manual flush valve
• Ion exchange water softener with automatic backwash valve
• Multimedia KDF–catalytic carbon–polyphosphate pre-filter with automatic backwash valve
• 4” x 20” Big Blue sediment pre-filter – 20 micron
• 4” x 20” Big Blue sediment pre-filter – 5 micron
• Horizontal multi-stage high-pressure jet pump with safeguards for brackish water applications
• 4” x 40” FRP pressure vessels
• 4” x 40” TFC membrane element
• Smart on-demand delivery (distribution) pump to point of use – 2 HP
• 4” x 10” Big Blue carbon post-filter – 5 micron
• Ultraviolet sterilizer
• On/off main power switch
• Powder-coated, welded aluminum frame with aluminum diamond plate

Ampac AP1500-LX 1500 GPD RO System: Instrumentation & Optional Features

Automatic Operating Programmable logic controller UL/CE Approved with:
- Smart relay
- Delayed start-up of the high-pressure pump
- Inlet solenoid valve
- Low & high feed pressure switch controls
- Supply & delivery pump controls
- R/P storage tank full, pump on/off

• Autoflush cycle
• Pre-treat lockout
• TDS/Conductivity monitor
• Temperature monitor
• Hour meter
• Complete panel for easy controls
• 4 count stainless steel liquid-filled pressure gauges
• Permeate and concentrate flow meters
• Inlet solenoid valve with bypass
• Low-pressure cut-off pressure switch
• Stainless steel system pressure control
• Stainless steel recycle pressure calve

Optional Features

• Anti-Scalant Dosing System (Hard Water Present Conditions)
• Chlorine Dosing System (Iron Manganese Present Conditions)
• Smart-on-Demand Supply Pump to increase Feed Water Pressure 1HP
• Ozone Generator Disinfection System Installed on Circulation Loop
