12 Stage Reverse Osmosis System Under Sink Water Filter

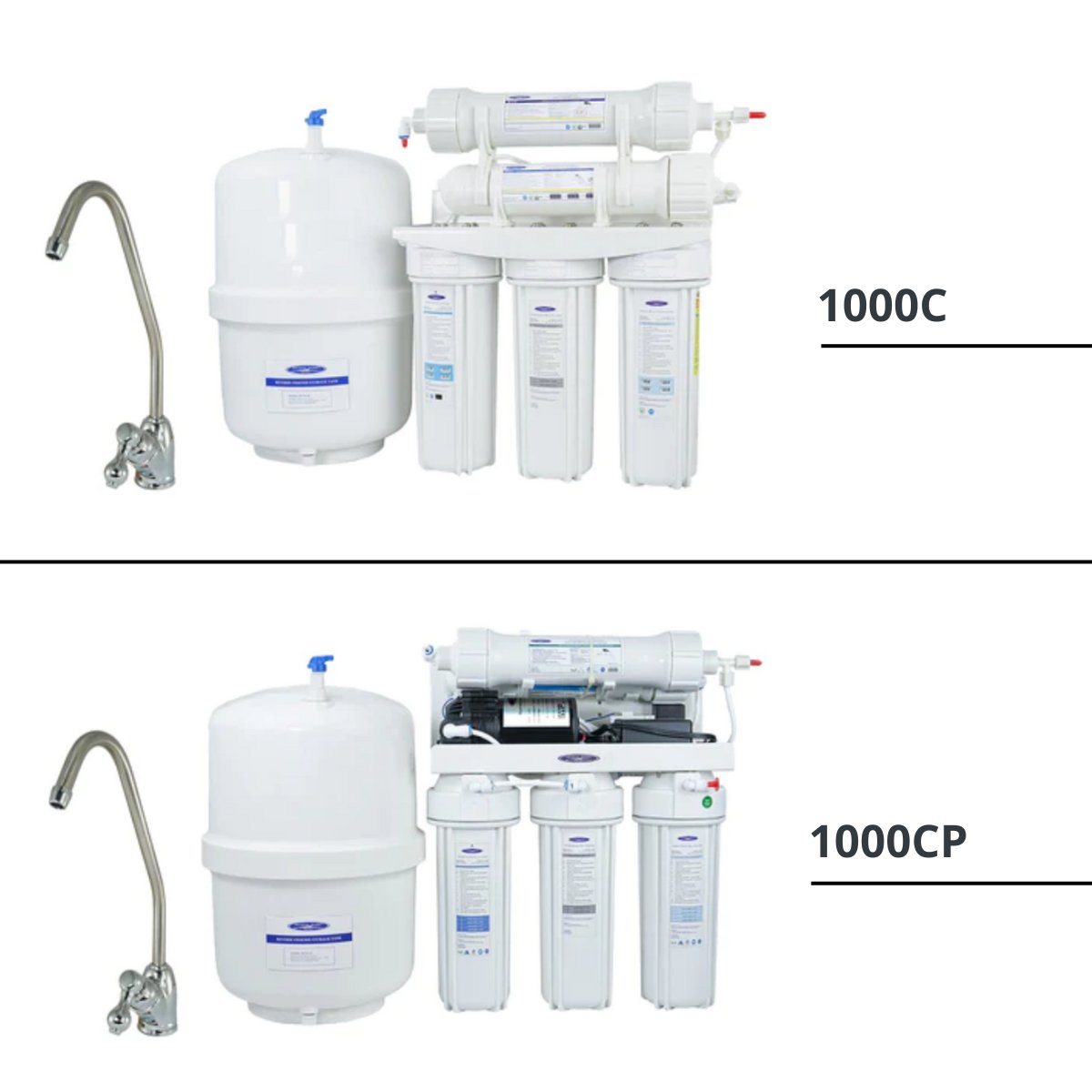

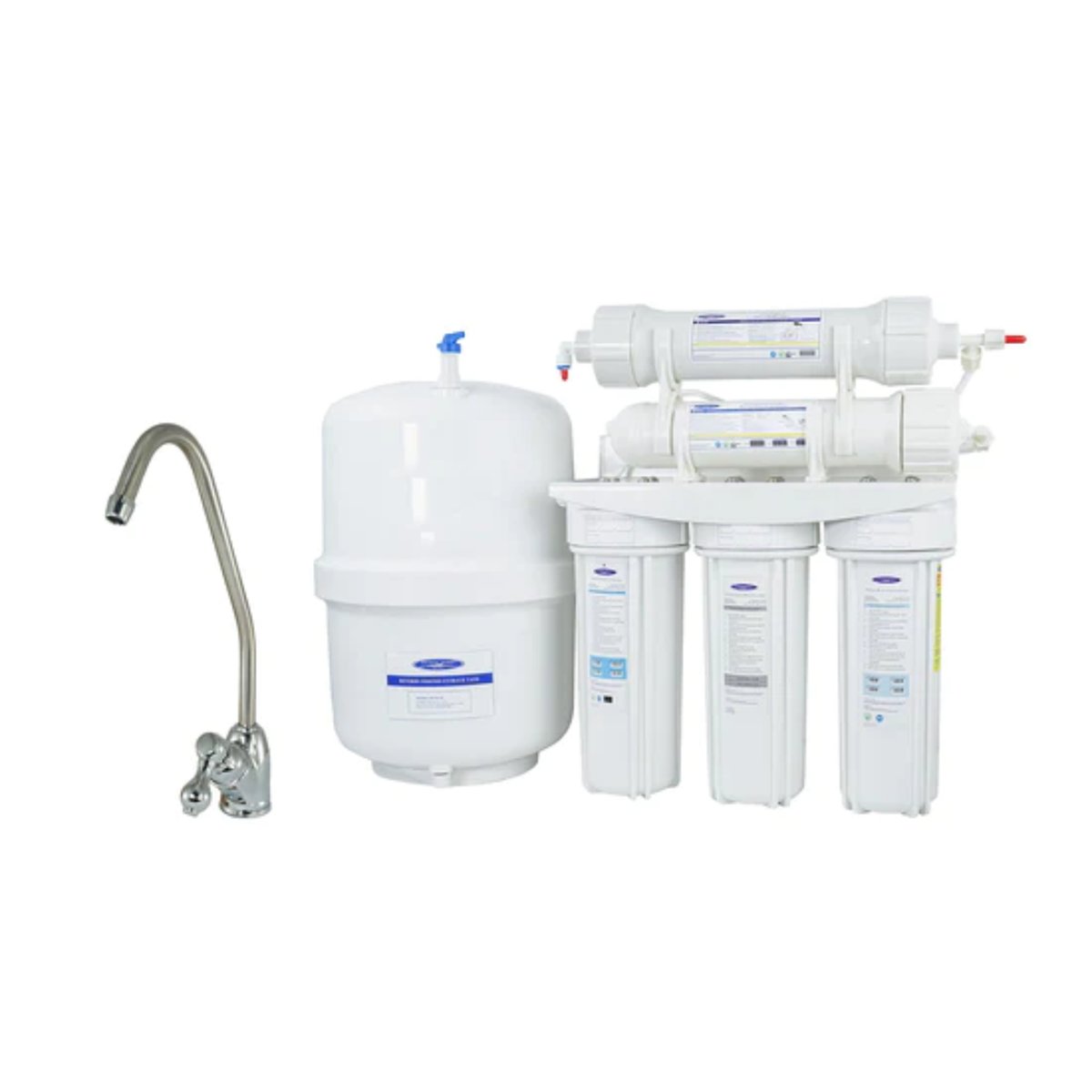

Crystal Quest Reverse Osmosis Under Sink Water Filter - 1000C

The Crystal Quest Reverse Osmosis Under Sink Water Filter - 1000C is a high-performance water filtration system engineered to deliver the purest, safest drinking water directly to your kitchen.

This system is ideal for households looking to eliminate a wide range of contaminants, providing crystal-clear water from a discreet, under-sink installation.

With its advanced reverse osmosis technology and robust filtration stages, the 1000C ensures that your family enjoys water that is not only clean but also tastes exceptional.

Features

Warning: Although a leak detector/flood prevention valve is optional with your purchase, it is highly recommended to avoid property damage. Due to numerous unpredictable circumstances including installation errors, flood-damage is subject to occur without a leak-detector valve. Including a leak-detector will allow the water system to be flood-proof.

Water Travels Through 12 Stages of Filtration:

STAGE 1 - Water travels through a 5 micron solid carbon cartridge for removing volatile organic carbon compounds (VOC's), insecticides, pesticides and industrial solvents and traps particles larger than 5 micron including sediment, silt, sand and dirt. It also helps to extend the life of the system.

STAGE 2 - Water passes through a 0.020 micron Ultrafiltration (UF) membrane. Ultrafiltration (UF) is an important purification technology used for the production of high-purity water. UF is effective for the removal of colloids, proteins, bacteria, viruses, parasites, protozoa and pyrogens (e.g., gram-negative bacterial endotoxins), other organic molecules larger than 0.2 micron, and most other water contaminants known today.

STAGE 3 - Water flows through pre one - micron filter pads (1 micron equals 1/25,000th of an inch), which removes suspended particles such as silt, sediment, cyst (Giardia, Cryptosporidium), sand, rust, dirt, and other undissolved matter.

STAGE 4 - Water passes through granulated activated carbon (GAC). GAC is universally recognized and widely used as an effective adsorbent for a wide variety of organic contaminants, such as chlorine, chemicals linked to cancer (THM's, benzene) pesticides, herbicides, insecticides, volatile organic compounds (VOC's), PCB's, MTBE's and hundreds of other chemical contaminants that may be present in water, bad taste, and odors from your drinking water.

STAGE 5 - Water flows through the ion exchange resin, reducing heavy metals such as lead, copper, aluminum, and water hardness.

STAGE 6 & 7 - Water flows through 2 beds of Eagle Redox Alloy®(Oxidation/reduction process) media made of a special high-purity alloy blend of two dissimilar metals - copper and zinc. Representing a new and unique way of water processing medium which by its natural process of electrochemical oxidation/reduction and adsorption action reduces and/or removes many unwanted contaminants from water. It is a major advancement in water treatment technology that works on the electro-chemical and spontaneous-oxidation-reduction (Eagle Redox Alloy®) principles. Chlorine is instantaneously and almost inexhaustibly oxidized.

Iron and hydrogen sulfide are oxidized into insoluble matter and attach to the surface of the media. Heavy metals such as lead, mercury, copper, nickel, chromium, cadmium, aluminum, and other dissolved metals are removed from the water by the natural process of electrochemical process. They are attracted to the surface of the media, much like a magnet. The media inhibits bacterial growth throughout the entire unit.

STAGE 8 - Water flows through another one-micron filtration pad for further reduction of undesirable particles. The end result is a great reduction or elimination of a wide variety of contaminants.

STAGE 9 - Water passes through a CRYSTAL QUEST® reverse osmosis membrane, which removes and filters particles as small as 1/10,000 of a micron as most inorganic chemicals (such as salts, metals, minerals) most microorganisms including cryptosporidium and giardia, and most inorganic contaminants.

STAGE 10 & 12 - Water flows through another one - micron filter pads (1 micron equals 1/25,000th of an inch), which removes suspended particles such as silt, sediment, cyst (Giardia, Cryptosporidium), sand, rust, dirt, and other undissolved matter.

STAGE 11 - Water passes through granulated activated carbon (GAC).

Comes with a complete installation kit that includes a European lead-free long-reach designer faucet, CRYSTAL QUEST® 3.2 gallons stainless steel pressurized holding tank with a polypropylene inner liner and a 2.0 gallon capacity, all interconnecting color-coded tubing, filter cartridges, Ultrafiltration membrane, RO membrane, wrenches, and installation hardware.

Carbon Block Filter Cartridge

SKU CQE-RC-04000

Crystal Quest® 5-Micron Carbon Block Cartridges are manufactured from an acid-washed coconut-carbon based formulation. Better tasting water is produced as carbon is used to its maximum advantage in minimizing pH levels while maintaining a low-pressure drop.

SMART Filter Cartridge

SKU: CQE-RC-04002

This cartridge utilizes the latest technologies in the water filtration industry, allowing them to provide you with healthy great-tasting water. Each filter cartridge has multi-levels or stages of filtration. These stages include micron filter pads, Granulated Activated carbon (GAC), Catalytic Carbon GAC, Ion Exchange resin, Eagle Redox Alloy® 6500, Eagle Redox Alloy® 9500, Ceramic and Tourmaline balls. The multistage design allows for the removal of many different contaminants from one cartridge.

(UF) Water Filter Membrane

SKU: CQE-RC-04055

Ultrafiltration (UF) is an important purification technology used for the production of high-purity water. UF is effective for the removal of colloids, proteins, bacteria, viruses, parasites protozoa, and pyrogens, (e.g., gram-negative bacterial endotoxins), and other organic molecules larger than 0.01 Micron size and most other water contaminations known today. Also removes pesticides and herbicides, as well as the hardness in water and some salt.

50 GPD RO Membrane

SKU: CQE-RC-04041

Reverse Osmosis membranes remove 99.9% of contaminants and unwanted particle sizes as small as 1/1000 of a micron. They do this by forcing untreated water through a semi-permeable membrane. The pressure forces the water in the reverse direction to the flow in normal osmosis. Some contaminants removed are lead, sodium, cyanide, ammonium, mercury, bromide, cadmium, trivalent chromium, radium, magnesium, fluoride, nitrates and many more.

GAC Inline Filter RO Cartridge

SKU: CQE-RC-04038
